    FDB Outdoor Fiber Optic Terminal Box 24 Port KCO-NAP-0424B Anti UV Black Color

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-NAP-0424B
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    FDB Outdoor Fiber Optic Terminal Box 24 Port KCO-NAP-0424B Anti UV Black Color


    Outdoor Fiber Optic FDB Distribution Box 24 Port KCO-NAP-0424B Anti UV Black Color



    Description:

    KCO-NAP-0424B outdoor fiber optic distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

    It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.


    Features:

    Water-proof design with IP65 Protection level

    Integrated with flap-up splice trays

    Maximum 120 fiber splice capacity, stainless anti-rust bolts and nuts

    Easy for maintenance and expansion, neat cabling.

    Fiber bend radius control more than 40mm.

    180 degree access with buckled lock structure.

    1x8 or 1x16 1x24 PLC Splitter can be installed in each splice tray as option.

    24 pcs of mechanical ports for 3-7mm drop cable.

    2 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm)


    Application:

    Wall mounting and pole mounting installation

    FTTH pre-installation and filed installation

    2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable


    Technical Data:

    ModelKCO-NAP-0424B
    MaterialPC+ABS
    Size340*220*95
    PLC1pcs 1x16 steel tube PLC Splitter
    Adapter24pcs SC/UPC or SC/APC Adapters
    ColorGray/Black
    Net. Weight1.85kg
    Work Temperature-40 ~+75degree
    Max CapacitySplice 120 Fibers (5 trays,24fiber/tray)
    Relative Humidity 85% (+30 degree)
    Atmospheric Pressure70Kpa~106Kpa
    Insert Loss 0.2dB
    UPC Return Loss 50dB
    APC Return Loss 60dB
    Insert and Pull out Life 1000 times
    InsulationThe grounding device is insulated with the Termination box, IR 1000m Ω/500V (direct current)
    Withstand Voltage

    Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U 3000V (direct current)


    Usage:

    - Wall mounting installation,

    - Pole mounting installation,

    - FTTH pre-installation,

    - Filed installation,

    - 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable.

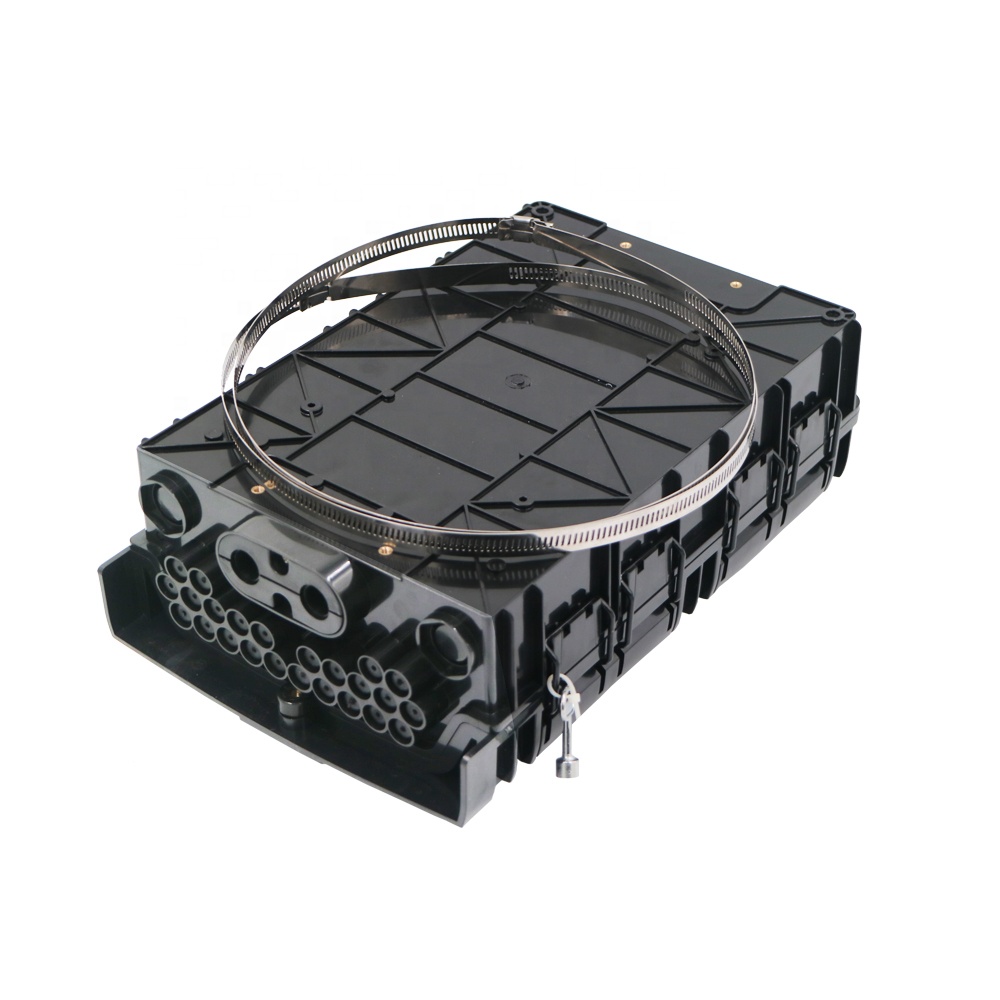

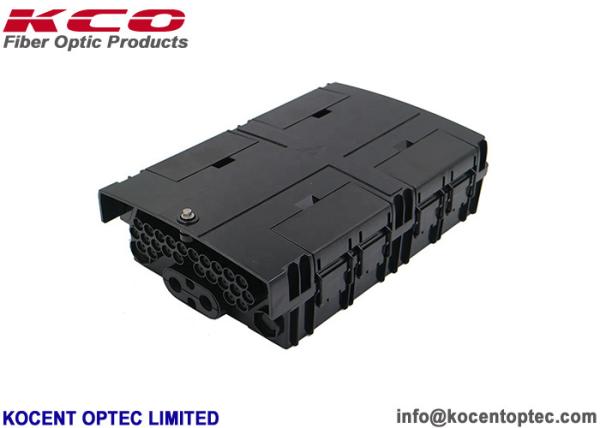

    Product photo:


    Ordering information:
    ItemCapacitySplitterConnectorAdapterLogo
    KCO-NAP-0424B16 cores1*2SC/UPCSC/UPCKCO
    1*4SC/APCSC/APCcustomized
    1*6FC/UPCFC/UPC
    1*8FC/APCFC/APC
    1*12ST/UPCST/UPC
    1*16LC/UPCLC/UPC
    .........

    OEM/ODM Service:
    If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
