MU UPC Single Mode G657B3 Fibre Optical Patch Cord Simplex Cable LSZH

Introduction:

1. Fiber patch cable is the fiber which connects the computer with equipment.

2. It is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical andthe terminal box.

3. MU connectors are a 1.25mm diameter ferrule for compact multiple optical connectors and self-retentive mechanism for backplane applications.

4. It’s application is for high-speed data communications, voice networks, telecommunications and high-density DWDM applications.

Technical Standard:

1. Insertion Loss:

UPC ≤ 0.2dB

APC ≤ 0.3dB

Typical: 0.1dB;

2. Return Loss:

SM UPC ≥ 55dB, APC ≥ 65dB;

MM UPC ≥ 35dB

3. Interchangeability: ≤0.2dB

4. Salt Spray : ≤0.2dB

5. Repeatability : (1000 times) ≤0.1dB

6. Vibration: (550Hz 1.5mm) ≤0.1dB

7. High Temperature : ( +85 sustain 100 hours) ≤0.2dB

8. Low Temperature : (-40 sustain 100 hours) ≤0.2dB

9. Temperature Circularly: (-40+85 sustain 100 hours) ≤0.2dB

10. Humidity : (+25+65 93 R.H.100 hours) ≤0.2db

11. Apex Offset: 0μm≤≤50μm

12. Radius of Curvature: 7mm≤≤25mm

13. Cable Type: Simplex, Duplex, Fan-Out, Branch Out;

14. Connector Type: LC, SC, FC, ST, E2000, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc.

15. Fiber Mode: SM (single mode) G652D, G655, G657

MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125, 40Gbs/100Gb/s 50/125)

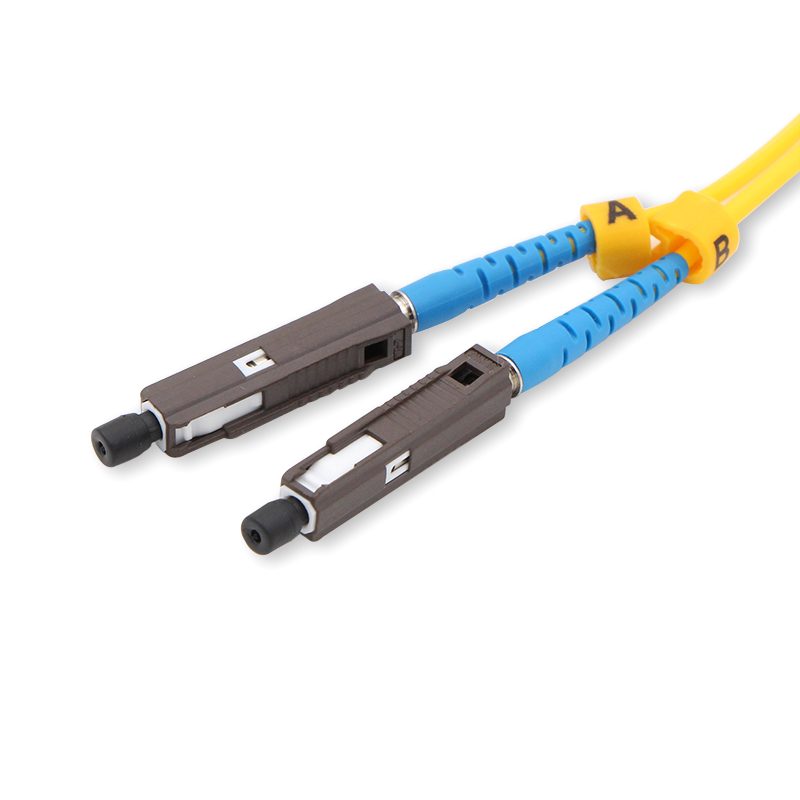

Product Photo:

Feature:

1. Common with Telcordia’s GR-326-Core, IEC Standard

2. Green Production, RoHS Standard

3. Excellent Polished and 100% tested.

4. High stability various environments

5. Customize order available

Category:

1. FC patch cable, SC patch cable, ST patch cable, LC patch cable, MTRJ patch cable, MPO patch cable, MU patch cable, SMA patch cable, FDDI patch cable, E2000 patch cable, DIN patch cable, D4 patch cable and so on.

2. Normal fiber optic patch cable: FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, SC-ST and so on

Patch cable length: 0.5m, 1m, 2m, 3m, 5m, 10m and so on

Characteristics:
1. Low insertion loss
2. Good repeatability
3. Big Return Loss
4. Mutual insert performance
5. Good temperature stability

Application:

1. An optical fiber communication system
2. Optical access network
3. Fiber-optic data transmission
4. Fiber optic CATV
5. A local area network (LAN)
6. Test equipment
7. Fiber optic sensors

Technical Data:

Data

Unit

FC, LC, SC Jumper

SR, MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

PC

APC

Insert loss

DB

≤0.3

≤0.2

≤0.3

≤0.3

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return loss

DB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Work wavelength

NM

1310,1510

1310,1510

1310,1510

1310,1510

Interchange ability

DB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

DB

≤0.2

≤0.2

≤0.2

≤0.2

Work temperature

℃

-40 to 75

-40 to 75

-40 to 75

-40 to 75

Install temperature

℃

-40 to 85

-40 to 85

-40 to 85

-40 to 85

Fiber OD

MM

3.0/2.0/0.9

3.0/2.0/0.9

3.0/2.0/0.9

3.0/2.0/0.9

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
