MU UPC Single Mode G657B3 Fibre Optical Patch Cord Simplex Cable LSZH

KOCENT OPTEC LIMITED, A Reliable Partner Of Fiber Optic Supplier:
1. With 4 production lines for common type of fiber optic patch cord and pigtail, and closed of QC process, we make sure the lead time and telecom level quantity for all of our patch cord and pigtail order for all of old and new customer.
2. All of our patch cord and pigtail is tested end-face and insertion loss 100% before shipment.
3. Our patch cord and pigtail cataloge include: Single mode (G652D, G567A1, G657A2, G657B3, G655, ...), Multimode (OM1, OM2, Om3, OM4, OM5. With common type connector such as FC, LC, SC, ST, and special type such as: MU, MPO, MTP, DIN, MTRJ, D4, ESCON, FDDI an so on.
4. For sample, we are free for all type of common type of pigtail in quantity less than 5pcs, and for all of common type of patch cord with length less than 1m quantity less than 3pcs.
Sample lead time: 1~2 days
For order more than 5000pcs: about 5 days
For huge order, please contact with our sale team to confirm lead time.

Introduction:

1. Fiber patch cable is the fiber which connects the computer with equipment.

2. It is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical andthe terminal box.

3. Fiber optic patch cords are available in all standard connector styles, all standard fiber types and all standard cable configurations to meet all your interconnection needs. They are available in any length .

4. The patch cord are factory terminated, assembled, tested and inspected prior to shipment.

5. All patch cords are manufactured using OFNR riser grade cable, LSZH, plenum, and premium customized specs available upon request, and 100% factory tested to ensure the performance to meet TIA/EIA-568-8-2, iso11801:2002 and EN 50173-1 standards. All assemblies are tested to meet Telcordia GR326-CORE.

6. MU connectors are a 1.25mm diameter ferrule for compact multiple optical connectors and self-retentive mechanism for backplane applications.

7. It’s application is for high-speed data communications, voice networks, telecommunications and high-density DWDM applications.

Application:

1. CATV

2. Active dvice termination

3. Telecommunication networks

4. Metro

5. Local Area Networks(LANs)

6. Data Processing networks

7. Test Equipment

8. Premise installations.

9. Wide Area Networks(WANs)

Feature:

1.Low insertion loss and back reflection loss

2.Good echangeability

3.Good Durability

4.High temperature stability.

5.Standard: Telcordia GR-326-CORE

6.Precise connector

7.Excellent mechanical capability

8.Patch cords accord with bellcord GR-326 ,ISO9001,ROHS

Technical Standard:

1. Insertion Loss:

UPC ≤ 0.2dB

APC ≤ 0.3dB

Typical: 0.1dB;

2. Return Loss:

SM UPC ≥ 55dB, APC ≥ 65dB;

MM UPC ≥ 35dB

3. Interchangeability: ≤0.2dB

4. Salt Spray : ≤0.2dB

5. Repeatability : (1000 times) ≤0.1dB

6. Vibration: (550Hz 1.5mm) ≤0.1dB

7. High Temperature : ( +85 sustain 100 hours) ≤0.2dB

8. Low Temperature : (-40 sustain 100 hours) ≤0.2dB

9. Temperature Circularly: (-40+85 sustain 100 hours) ≤0.2dB

10. Humidity : (+25+65 93 R.H.100 hours) ≤0.2db

11. Apex Offset: 0μm≤≤50μm

12. Radius of Curvature: 7mm≤≤25mm

13. Cable Type: Simplex, Duplex, Fan-Out, Branch Out;

14. Connector Type: LC, SC, FC, ST, E2000, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc.

15. Fiber Mode: SM (single mode) G652D, G655, G657

MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125, 40Gbs/100Gb/s 50/125)

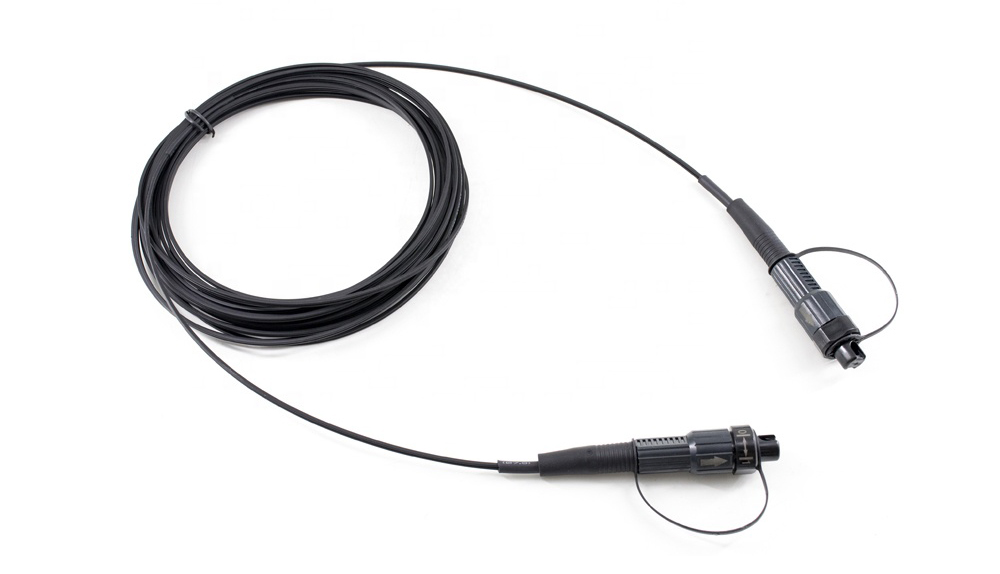

Product Photo:

Category:

1. FC patch cable, SC patch cable, ST patch cable, LC patch cable, MTRJ patch cable, MPO patch cable, MU patch cable, SMA patch cable, FDDI patch cable, E2000 patch cable, DIN patch cable, D4 patch cable and so on.

2. Normal fiber optic patch cable: FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, SC-ST and so on

Patch cable length: 0.5m, 1m, 2m, 3m, 5m, 10m and so on

Technical Data:

Data

Unit

FC, LC, SC Jumper

SR, MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

PC

APC

Insert loss

DB

≤0.3

≤0.2

≤0.3

≤0.3

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return loss

DB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Work wavelength

NM

1310,1510

1310,1510

1310,1510

1310,1510

Interchange ability

DB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

DB

≤0.2

≤0.2

≤0.2

≤0.2

Work temperature

℃

-40 to 75

-40 to 75

-40 to 75

-40 to 75

Install temperature

℃

-40 to 85

-40 to 85

-40 to 85

-40 to 85

Fiber OD

MM

3.0/2.0/0.9

3.0/2.0/0.9

3.0/2.0/0.9

3.0/2.0/0.9

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

KOCENT OPTEC LIMITED is a high-tech company that focus on passive and active fiber optic product series. Established in 2007, we have more than 15 years of experience in optical fiber accessories production. With strong R&D team and close quality process, we get more and more trust from our old and new customers. They are willing to let us become their long-term partner.

KOCENT OPTEC LIMITED best advantage product is fiber optic passive product such as:

- Fiber optic cable (indoor cable, outdoor cable, ftth cable, tactical fiber optic cable),

- Fiber optic splitter PLC splitter,

- Fiber optic patch cable/ pigtail,

- MPO/MTP fiber optic solution products,

- Fiber optic terminal box,

- Fiber optic ditribution box,

- Fiber optic distribution frame and patch panel,

- Fiber optic splice closure box,

- Fiber optic adapter, fiber optic attenuator, fiber optic connector, fiber optic ferrule, fiber optic protection sleeves (large stock goods, always ready to delivery any time), etc.

With the development of the company business we are marching into the active fiber products research and sales. Fiber optic Media converter and SFP XFP fiber optic module is our first step to do the active fiber optic products.

In the past, our products were selling to America, Canada, Russian, many Europe countries and also Asia coutries. Currently, our products also are exporting to South Ameria, Africa, and Middle East countries. It is very wellcome to contact with us if you want to get good price, qood quality and profesional technical data about fiber optic products to expand your local market.

KOCENT OPTEC LIMITED has more than 15 years of experience in production of passive fiber optic products.

Fast connector work shop:

Our all of fast connector packing way is 10pcs/ blister box, then 100pcs/small gift box, and then 1000pcs or 2000pcs/ big carton box. 100% tested with IL less than 0.3dB before shipment.

Patch cord work shop:

Kocent Optec Limited prodice OEM service for all type of fiber optic patch cord. We have rich experience in produce the fiber optic patch cord, special in ftth drop patch cable, army field outdoor patch cable, MPO patch cable, armoured patch cable and common type of fiber optic patch cable.  All of patch cable is tested 100% before shipment.

Fiber optic splitter work shop:

Fiber optic splitter is one of our advantage product. With more than 5 years of experience in production fiber optic splitter, we only ship the good quality and telecom grade of fiber optic splitter.

Fiber optic cable work shop:

We can supply ftth drop cable, indoor cable and outdoor cable too. With brand new high-tech machine, we promise all of cable before shipment are tested and reach telecom grade request.

Fiber optic adapter, connector housing workshop

Our oldest productions are fiber optic housing and fiber optic adapter. All of housing part can reach RoHS compliant and meet telecom grade request.

Huge ware house:

Strong shipping partner:

With strong shipping partner, we help our customer save more shipping cost.

Customer can choose to send by internaltion express, by air, and by sea.
