    Waterproof IP65 Fiber Optic Terminal Box FDB OTB Outdoor LGX 1*8 SC/APC Easy Installation

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-NAP-0308D
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    Waterproof IP65 Fiber Optic Terminal Box FDB OTB Outdoor LGX 1*8 SC/APC Easy Installation


    8 Port Optical Fiber NAP Box FDB OTB Outdoor Termination Box LGX 1*8 SC/APC Splitter Box


    Description:

    - KCO-NAP-0308D outdoor fiber optic distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

    - It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit.

    - Meanwhile, it provides solid protection and management for the FTTx network building.

    - Mechanical Seal:Good Sealing Performance, Easy Installation, Repeat Installation
    - Installation Style: Indoor and outdoor Wall-mounting, Pole-mounting


    Features:

    - Water-proof design with IP65 Protection level

    - Integrated with flap-up splice trays

    - Maximum 120 fiber splice capacity, stainless anti-rust bolts and nuts

    - Easy for maintenance and expansion, neat cabling.

    - Fiber bend radius control more than 40mm.

    - 1x8 PLC Splitter can be installed in each splice tray as option.

    - 8 pcs of mechanical ports for 3-7mm drop cable.

    - 3 cable entrance(10-16.5mm) for uncut cable.


    Technical Data:

    ModelKCO-NAP-0308D
    MaterialPC+ABS / ABS
    Size252*210*72mm
    PLC1pcs 1x8 steel tube PLC Splitter / 1*8 LGX box type splitter
    Adapter8pcs SC/UPC or SC/APC Adapters
    ColorGray/Black
    Net. Weight1.15kg
    Work Temperature-40 ~ +75degree
    Max CapacitySplice 12 Fibers (1 trays,12fiber/tray)
    Relative Humidity 85% (+30 degree)
    Atmospheric Pressure70Kpa~106Kpa
    Insert Loss 0.2dB
    UPC Return Loss 50dB
    APC Return Loss 60dB
    Insert and Pull out Life 1000 times
    InsulationThe grounding device is insulated with the Termination box, IR 1000m Ω/500V (direct current)
    Withstand Voltage

    Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U 3000V (direct current)


    Usage:

    - Wall mounting installation,

    - Pole mounting installation,

    - FTTH pre-installation,

    - Filed installation,

    - 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable.

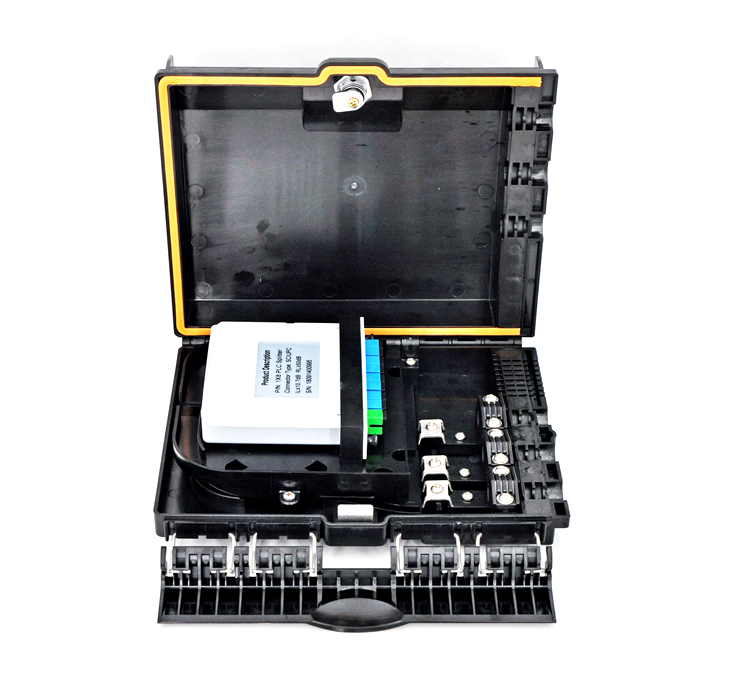

    Product photo:


    Ordering information:
    ItemCapacitySplitterConnectorAdapterLogo
    KCO-NAP-0308D12 cores1*2SC/UPCSC/UPCKCO
    1*4SC/APCSC/APCcustomized
    1*6FC/UPCFC/UPC
    1*8FC/APCFC/APC
    ...ST/UPCST/UPC
    LC/UPCLC/UPC
    ......

    OEM/ODM Service:
    If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
