    FTTH FTTA 8 Port Outdoor Optical Termination Box 8 Cores NAP CTO OTB ODB 8FO

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-NAP-0208W
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    FTTH FTTA 8 Port Outdoor Optical Termination Box 8 Cores NAP CTO OTB ODB 8FO


    FTTH FTTA 8 Port Outdoor Termination Box / 8 Cores Distribution Box NAP CTO OTB ODB 8FO


    Description:

    - KCO-NAP-0208W outdoor fiber optic distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

    - KCO-NAP-0208W is outdoor fiber optic distribution box that is new design for FTTx project. It can reach IP65 water proof level.

    - It is designed with 2 port for outdoor cable and 8 port for FTTH drop cable.

    - With 3 type of design, it can install 1*8 mini type splitter, or 1*8 LGX spltiter or also can replace be 8 port fiber optic adapter plate.

    - Ftth drop cable output port can change to Huawei Mini SC water proof connector port for your FTTA project.

    - The tray allows to splice maximum 12 fibers per tray.

    - It is availble to install the adapter plate with 9 ports of SC port, or also be avanlble to install the LGX splitter with splitter holder.

    - It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit.

    - Meanwhile, it provides solid protection and management for the FTTx network building.

    - Mechanical Seal: Good Sealing Performance, Easy Installation, Repeat Installation
    - Installation Style: Indoor and outdoor Wall-mounting, Pole-mounting

    - Kocent Optec Limited not only can provide the box, also can provice the box uploaded with full accessories. Customer can choose to install adapter and mini typ splitter or pigtail, and also choose LGX box type of splitter.

    - Kindly contact with our sales team to get more information about this box.

    Features:

    - PC+ABS material used ensures the body strong and light..
    - Suitable for the mirco, insert and cassette splitter installation
    - Fit one 1:8 or two 1:4 mirco optical splitter
    - Fit optical writing of cable diameter below 16mm and 8 shape or diameter 3 rubber-insulated fiber cable of protection splicing.

    - Can be wall mountable or pole mountable.

    - Protection level up to IP55. Wet-proof, water-proof, dust-proof, anti-aging

    - Easy installations: Ready for wall mount – installation kits provided

    - Space saving: Double-layer design for easier installation and maintenances

    - Easy installations: Ready for wall mount – installation kits provided.

    - Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

    - Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

    - Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapt or installation, easy maintenance.…


    Usage:

    - Wall mounting installation,

    - Pole mounting installation,

    - FTTH pre-installation,

    - Filed installation,

    - 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable.

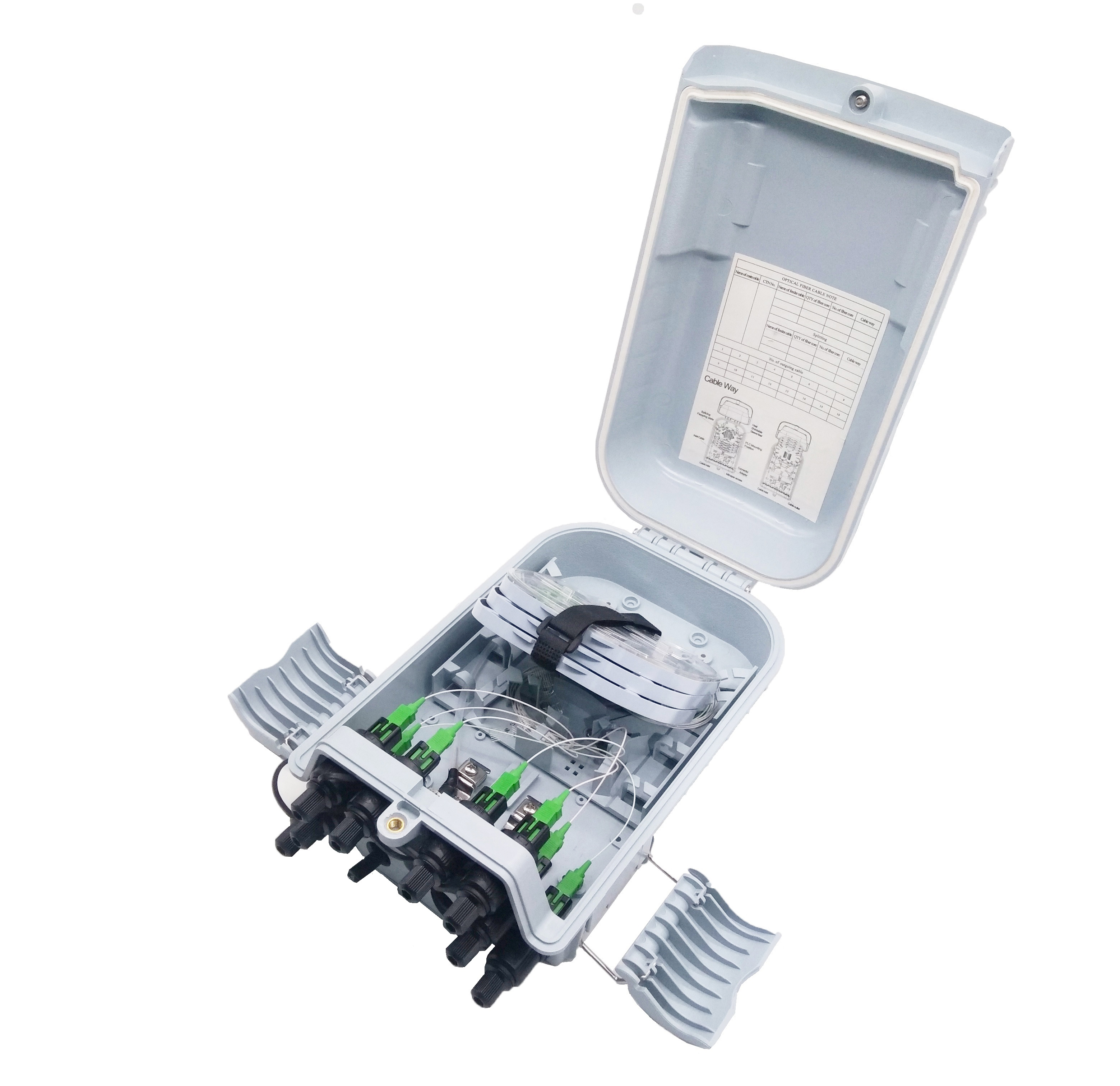

    Product photo:


    Technical Data:

    ModelKCO-NAP-0208W
    MaterialPC+ABS / ABS
    Size287*172*102mm
    PLC1pcs 1x8 steel tube PLC Splitter / 1*8 LGX box type splitter
    Adapter8pcs SC/UPC or SC/APC Adapters
    ColorGray/Black/White
    Net. Weight1.15kg
    Work Temperature-40 ~ +75degree
    Max CapacitySplice 12 Fibers (1 trays,12fiber/tray)
    Relative Humidity 85% (+30 degree)
    Atmospheric Pressure70Kpa~106Kpa
    Insert Loss 0.2dB
    UPC Return Loss 50dB
    APC Return Loss 60dB
    Insert and Pull out Life 1000 times
    InsulationThe grounding device is insulated with the Termination box, IR 1000m Ω/500V (direct current)
    Withstand Voltage

    Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U 3000V (direct current)


    Ordering information:
    ItemCapacitySplitterConnectorAdapterLogo
    KCO-NAP-0208W12 cores1*2SC/UPCSC/UPCKCO
    1*4SC/APCSC/APCcustomized
    1*6FC/UPCFC/UPC
    1*8FC/APCFC/APC
    ...ST/UPCST/UPC
    LC/UPCLC/UPC
    ......

    OEM/ODM Service:
    If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
