    FAT CTO MODB FTB Fiber Optic Terminal Box Indoor Waterproof 48 Port KCO-FTB-48HW

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-FTB-48HW
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    FAT CTO MODB FTB Fiber Optic Terminal Box Indoor Waterproof 48 Port KCO-FTB-48HW


    KCO-FTB-48HW 48 Port Indoor Fibra Optica Distribution Box / Same Huawei Termination Box


    Specification:

    ItemKCO-FTB-48HW
    Dimension450x180x150mm
    Net Weight3.2kg
    Splice tray6pcs
    Adapter ports48 ports for SC simplex adapter
    Adapter Plate Capacity48 SC Simplex
    DividersMax 4pcs 1:16 Splitter
    ColorGrey RAL 7035
    Working Temperature-25°C ~ 60°C (5 to 95% relative humidity)

    Feature:

    - 48 ports for SC simplex adapter

    - 1*16 splitter can be installed as an option.

    - Efficient cable management

    - Waterproof design with IP-55 protection level.

    - Integrated with splice cassette and cable management rods

    - Manage fibers in a reasonable fiber radius cnodition

    - Easy to maintain and extend the capacity

    - Fiber bend radius control more than 40mm

    - Suitable for the fusion splice or mechanical splice


    Descriptions:

    - KCO-FTB-48HW fiber optic termination box is design for indoor using.

    - It is a grouping module for fusion, coupling and connection of up to 48 fibers.

    - It is a junction box and connection that is used in FTTH networks inside buildings as an optical interconnection point between the optical cables of the power supply or distribution networks of the operators and the distribution network of the building (vertical).

    - Its modular design allows it to be used in independent modules either as a module for terminating the operator's network and housing optical dividers or as an optical interconnection module with the vertical network of the building, allowing the parking of fiber termination connectors in the panel itself. Directly provide the discharges to the homes of customers.

    - The boxes are installed bolted directly to the wall in common areas of the building: garages, communications rooms, interior rooms, etc.


    Specifications:

    ModelKCO-FTB-48HW
    MaterialPC+ABS or ABS
    Dimension450*180*150mm
    Cable Entry2 cable entrance: 10-16.5mm
    Adapter port48 ports
    Applicable cable diameter2*3mm FTTH drop cable, 2*5mm figure 24 FTTH drop cable
    Max. Capacity48 Fibers, 1 tray x 16F
    AdapterMax. 48pcs SC simplex (LC, FC, E2000,... optional)
    Sealing structureMechanical sealing with PE waterproof sealing ring
    PLC SplitterMax. micro plug-in 1x32 Splitter
    ColorGray, White or Black
    IP GradeIP55
    Operating Temperature-20°C~+60°C
    Relative Humidity<95%(+40°C)
    Insulated Resistance>2x10MΩ/500V(DC)
    Installation Method
    (in overstriking)
    Floor Standing / Wall Mounted / Pole Mounted /
    Corridor Mounted / Mounted in Cabinet

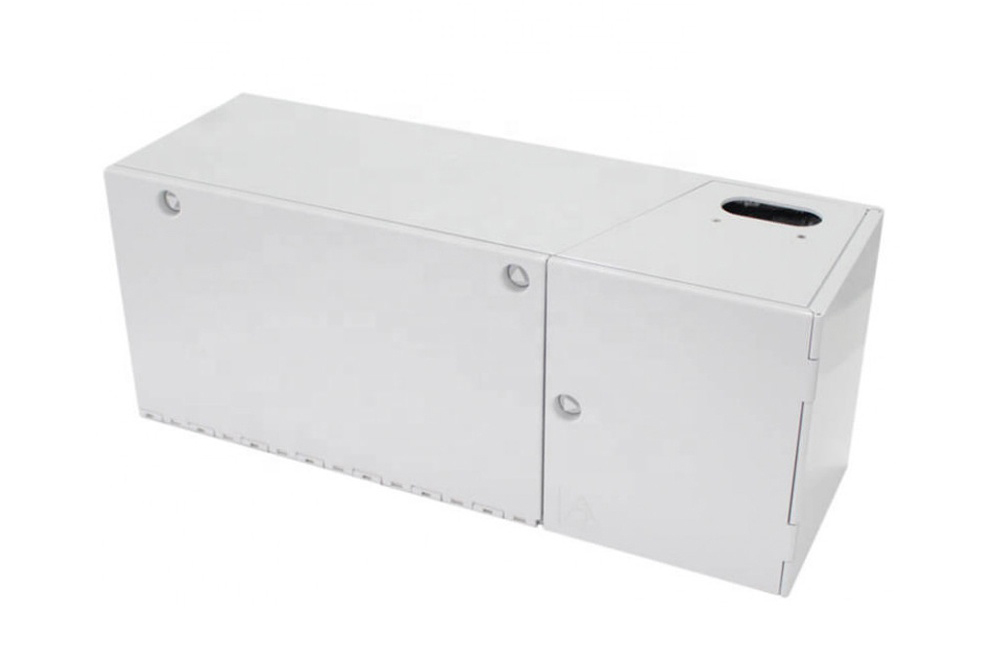

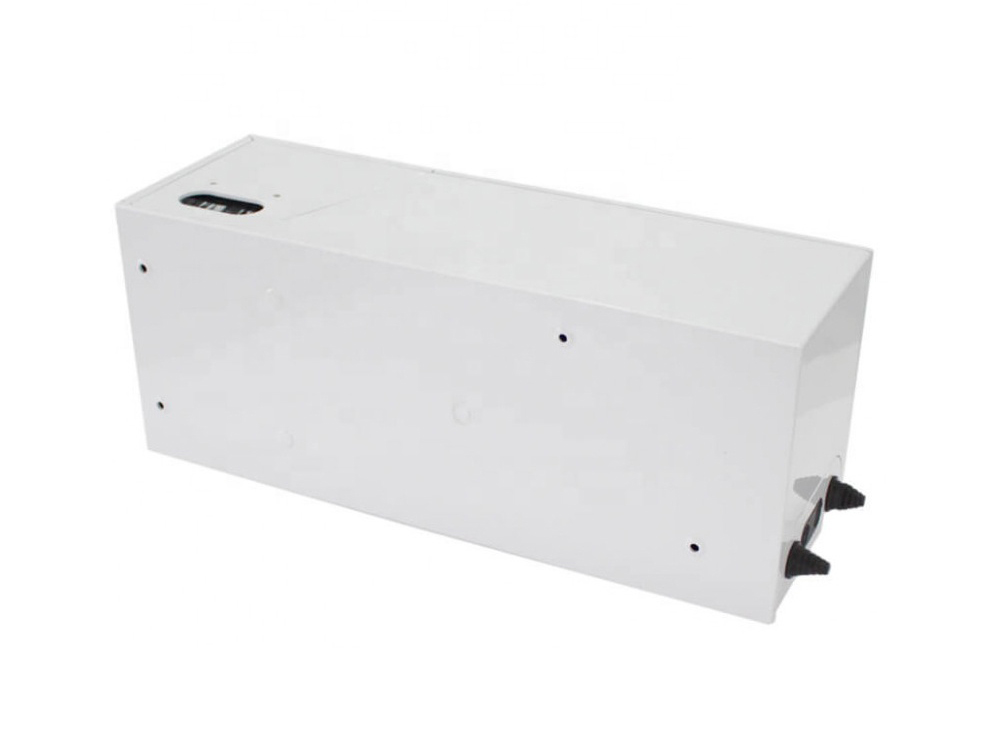

    Products photos:





    Related Products:

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea: COSCO, HUYNDAI, etc

    - Standard shipping port: Shenzhen, Hongkong, Ningbo
