    48fo Multioperador Fiber Optic Terminal Box Multi Opration FTB ODF ODP FDB Wall Mount

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-FTB-48HW
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    48fo Multioperador Fiber Optic Terminal Box Multi Opration FTB ODF ODP FDB Wall Mount


    48fo Multioperador Optical Fiber Multi Opration Distribution Box FTB ODF ODP FDB Wallmount Box


    Feature:

    - Standardized dimensions, according to the recommendations of TELEFÓNICA, approved for the main operators.
    - Multi-operator cabinet with six trays and capacity for 48 fibers.
    - Allow the connection between multiple operators and clients, allows the connection through panels or directly by splices.
    - The flexible side entrance that allows to stack several boxes and an oval entrance that facilitates the bleeding of the cable.
    - Fire resistant that allows splicing, patching, dividing or storing optical fibers, equipped with an 8mm male triangular closing wrench.
    - It has a central area to organize the fibers which is protected with a main door.
    - It has compartments separated by a distribution panel of up to 48 optical fibers and allows the installation of the cables by means of fusion or direct connection.
    - Possibility of scalability according to the number of operators that address the building

    Descriptions:

    - KCO-FTB-48HW fiber optic termination box is design for indoor using.

    - It is a grouping module for fusion, coupling and connection of up to 48 fibers.

    - The Multi-Operator Box is a pooling module for splicing, coupling and stirring up to 48 optical fibers.

    - The modules can be stacked to support configurations of greater capacity or to allow the pooling between building operators and commercial operator.

    - 48 optical fibers multioperator distribution cabinet for inside buildings installation, allow connection between multiple operators and customers.

    - The Multi-Operator Box is an optical distribution box for Fiber to The Home applications with a capacity of 48 users.

    - It allows the connection between the cable coming from the outside and the cable of the riser.

    - It is a junction box and connection that is used in FTTH networks inside buildings as an optical interconnection point between the optical cables of the power supply or distribution networks of the operators and the distribution network of the building (vertical).

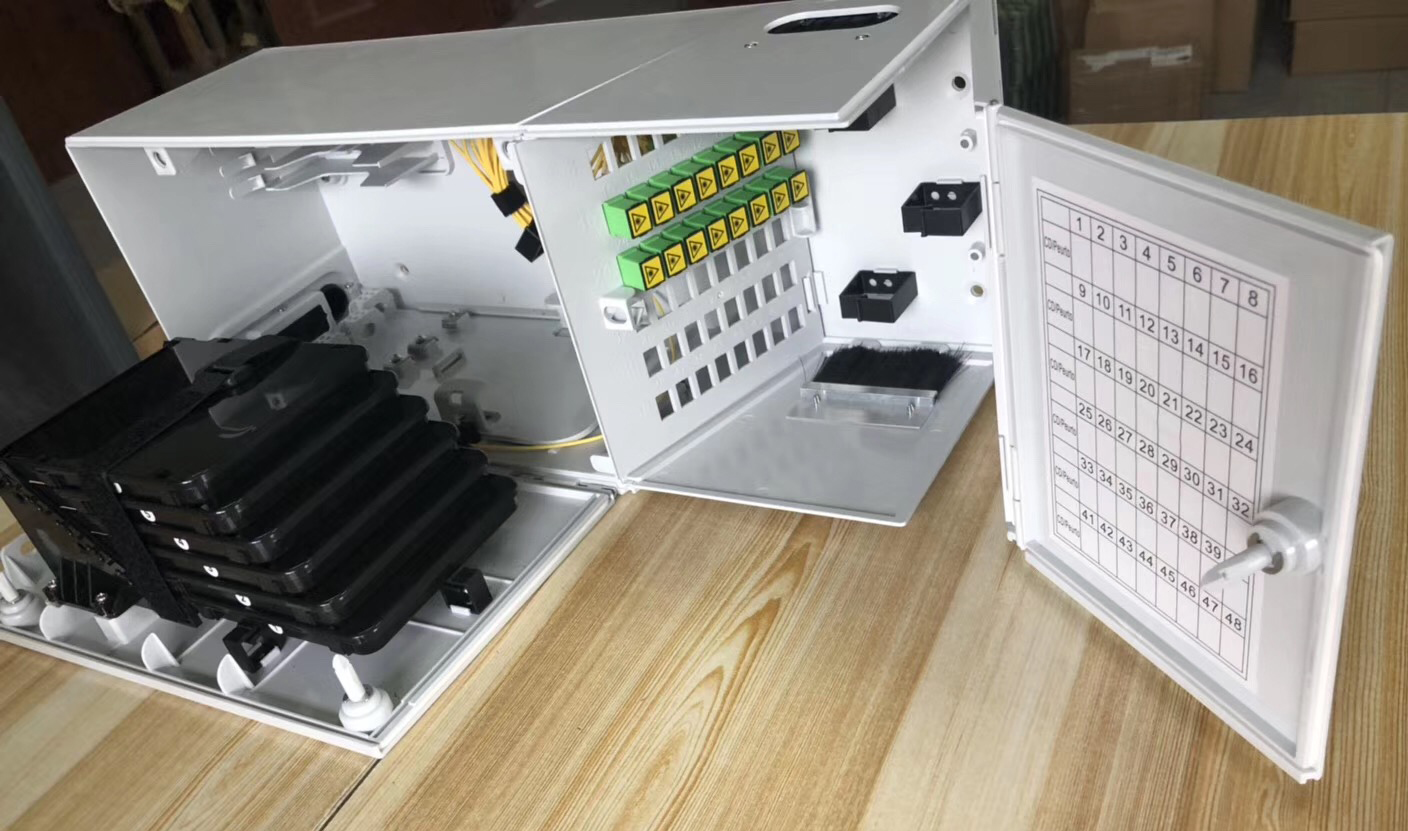

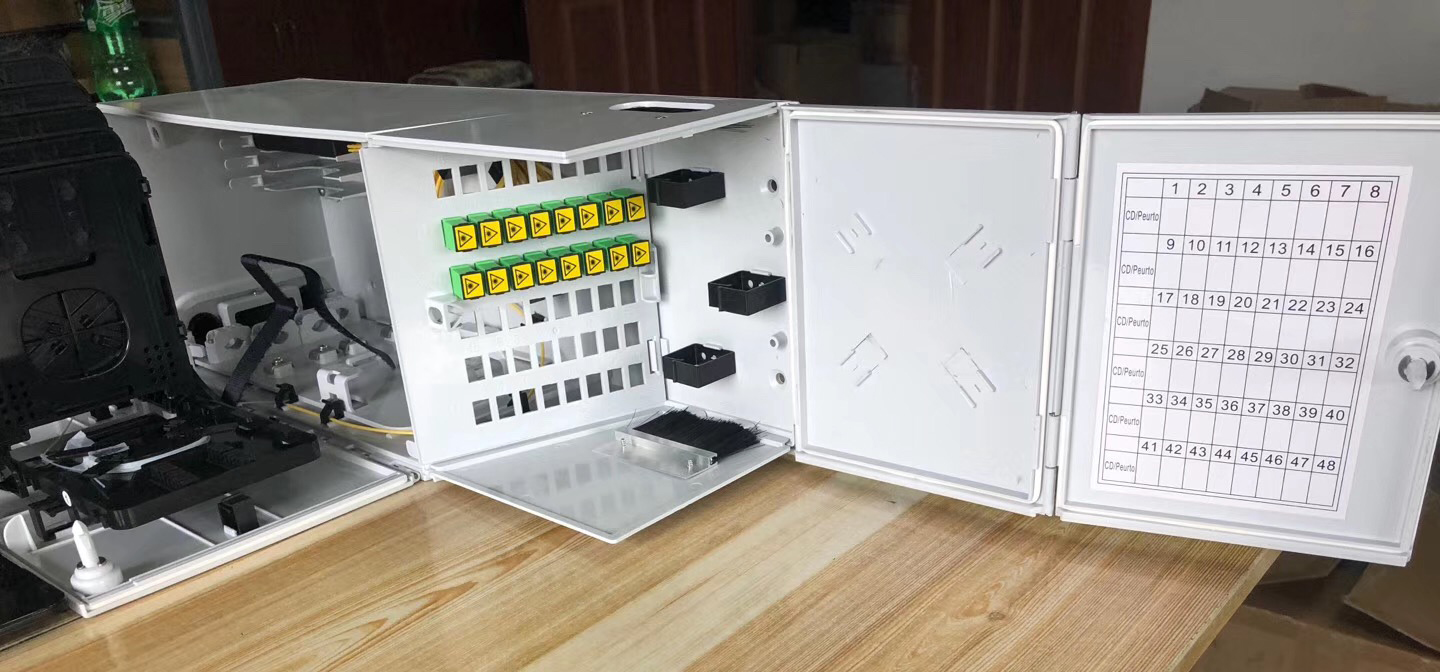

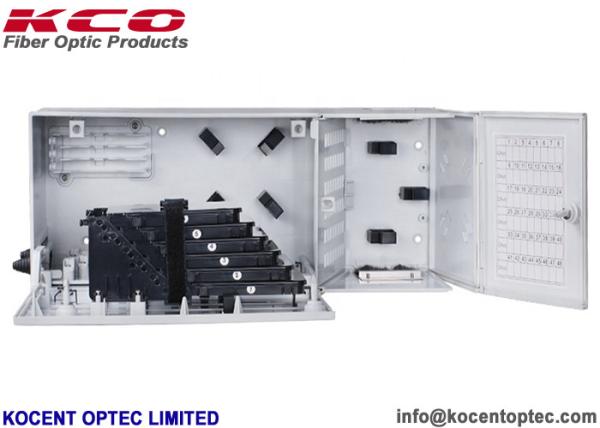

    Products photos:



    Specification:

    ItemKCO-FTB-48HW
    Dimension450x180x150mm
    Net Weight3.2kg
    Splice tray6pcs
    Adapter ports48 ports for SC simplex adapter
    Adapter Plate Capacity48 SC Simplex
    DividersMax 4pcs 1:16 Splitter
    ColorGrey RAL 7035
    Working Temperature-25°C ~ 60°C (5 to 95% relative humidity)

    Specifications:

    ModelKCO-FTB-48HW
    MaterialPC+ABS or ABS
    Dimension450*180*150mm
    Cable Entry2 cable entrance: 10-16.5mm
    Adapter port48 ports
    Applicable cable diameter2*3mm FTTH drop cable, 2*5mm figure 24 FTTH drop cable
    Max. Capacity48 Fibers, 1 tray x 16F
    AdapterMax. 48pcs SC simplex (LC, FC, E2000,... optional)
    Sealing structureMechanical sealing with PE waterproof sealing ring
    PLC SplitterMax. micro plug-in 1x32 Splitter
    ColorGray, White or Black
    IP GradeIP55
    Operating Temperature-20°C~+60°C
    Relative Humidity<95%(+40°C)
    Insulated Resistance>2x10MΩ/500V(DC)
    Installation Method
    (in overstriking)
    Floor Standing / Wall Mounted / Pole Mounted /
    Corridor Mounted / Mounted in Cabinet

    Related Products:

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea: COSCO, HUYNDAI, etc

    - Standard shipping port: Shenzhen, Hongkong, Ningbo
