    Wall / Pole Mount Outdoor Fiber Optic Distribution Box 1*16 2*16 Splitter KCO-SMC-0224X

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-SMC-0224X
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    Wall / Pole Mount Outdoor Fiber Optic Distribution Box 1*16 2*16 Splitter KCO-SMC-0224X


    KCO-SMC-0224X Outdoor Wallmount Pole Mount Optic Fiber Distribution Terminal Box 1*16 2*16 Splitter


    Descriptions:

    - KCO-SMC-0224X is one of product in our SMC distribution box series. It can be distribution box and can be splitter box too.

    - KCO-SMC-0224X fiber optic distribution termination box is design for outdoor and indoor application with 24 port adapter, can install SC simplex, FC simplex, ST simplex, E2000 simplex or LC suplex adapter.

    - It can be fiber optic splitter box that can install 1 pcs of 1*16 or 2*16 LGX fiber optic splitter. And also can be distribution box when change to adapter plate.

    - Fiber optic terminal box KCO-SMC-0224X is a box for fiber terminal distribution in optical fiber transmission and communication network. It can be 24 fibers splicing, protection and distribution.

    - KCO-SMC-0224X fiber optic distribution terminal box with special design which can change the adapter plate.

    - This adapter plate maximum can install 24 pcs of adapter ( for SC, FC, ST, E2000 use simplex adapter and for LC use duplex adapter)

    - KCO-SMC-0224X fiber optic distribution terminal box can be wall-mount and also pole mount installation.


    Features:

    - High quality SMC plastic.

    - Long life time

    - Can load 24pcs LC, FC, ST, SC, E2000 … adapters.

    - Wall mounting application.

    - 04pcs water proof cable entry port.

    - Adapter plate: max 24 ports

    - Splitter plate: max 1pc 1*16 or 2*16 LGX splitter or 2pcs 1*8 Splitter with SC port

    Application:

    - FTTH Outdoor project

    - Wall mounting and pole mounting installation

    - FTTH pre-installation and filed installation 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable


    Product size:

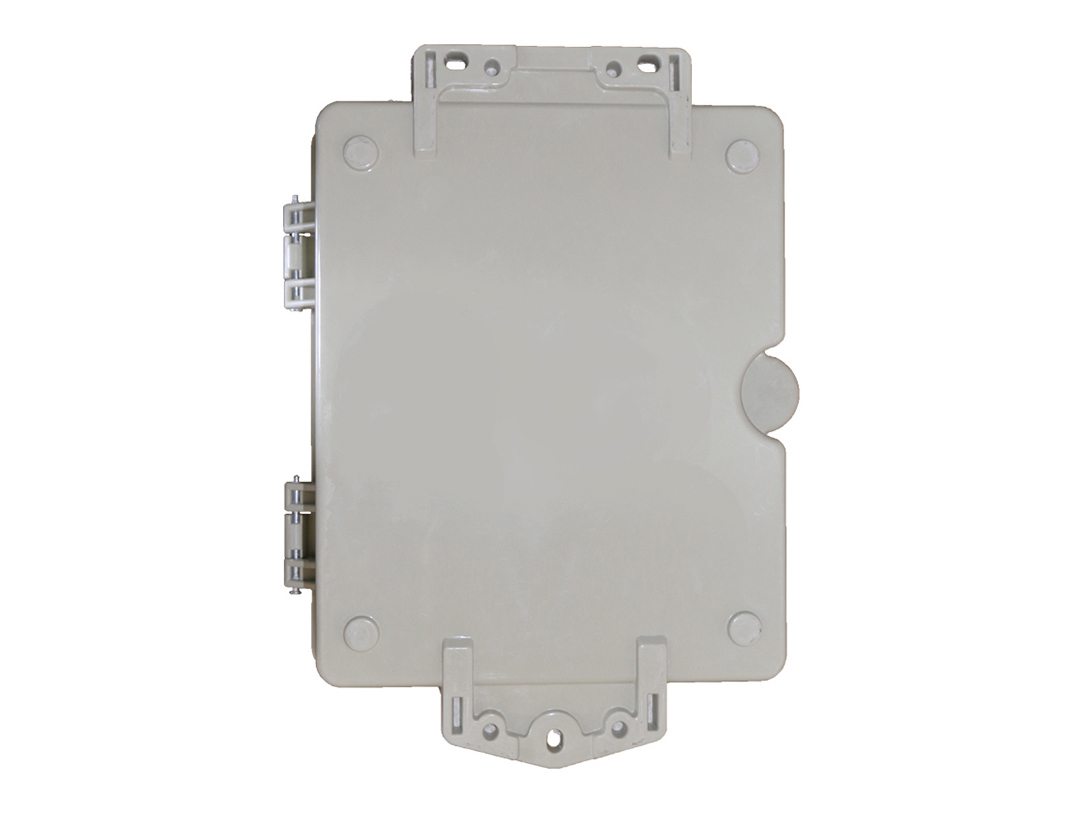

    Products photos:





    Specifications:

    ModelKCO-SMC-0224X
    MaterialSMC Plastic (PC+ABS or ABS or cutomized)
    Dimension390*310*130mm
    Weight3.5kgs
    Cable Entry02 cable entrance: 10-16.5mm
    Applicable cable diameteroutdoor cable, ftth drop cable
    Max. Capacity24 Fibers, 1tray x 24F
    AdapterMax. 24pcs SC simplex (LC, FC, MT optional)
    Sealing structureMechanical sealing with PE waterproof sealing ring
    PLC SplitterMax. LGX 1*16 Splitter
    ColorGray, White or Black
    IP GradeIP65
    Operating Temperature-40°C~+80°C
    Relative Humidity<95%(+40°C)
    Insulated Resistance>2x10MΩ/500V(DC)
    Installation Method
    (in overstriking)
    Floor Standing / Wall Mounted / Pole Mounted /
    Corridor Mounted / Mounted in Cabinet

    - Kocent Optec Limited provide OEM service for all of ODF box, distribution box and terminal box.

    - Logo printing is free for order more than 1000pcs, Logo lettering is free for order more than 10000pcs.

    - The box can full load with adapter, pigtail or splitter as customer request.

    - With perfect fiber optic product supply chain, we can supply empty box, box come with adapter, box come with adapter and pigtail, box come with adapter and splitter.

    - Contact with our sales team to get best offer for KCO-SMC-0224X fiber optic termination box.

    OEM/ODM Service:

    - If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



    Packing:
    - According to Stardard Export Packing.
    - Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea

    - Standard export sea port: Shenzhen, Hongkong, Ningbo

    - Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
