    Auto Shut SCA Fiber Optic Network Adapter 4 Cores SC APC Green Color 1 Chanel Way

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-SCA-Shutter-non
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 500,000pcs/month
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

    Auto Shut SCA Fiber Optic Network Adapter 4 Cores SC APC Green Color 1 Chanel Way


    SC APC Green Color Fiber Optic Adapter / Auto-shut SCA Adapter / Non-flange Fiber Adapter


    Description:

    - We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapter.

    - Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.

    - By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible.

    - At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility.

    - Developed to offer the highest level of dust and laser protection available, SC Auto Shutter Adapter is ideal for the FTTH application.

    - The fiber optic adapters with shutter are mainly available with LC and SC plastic version with or without flange.

    - They are available in two versions, one is integrated build in type , the other is with removable shutter to meet flexible installation requirement, and avoid laser beam hurt.

    - Shutters on the adapter open and close automatically when the connector is being inserted into or extracted from the adapter.

    - SC is extremely easy-to-use and is safe enough for unskilled workers.

    - In addition, the SC Auto Shutter Connector can be used with a regular SC adapter.


    Advantage:

    - Good Protection with Dust Cap
    - Simply Connecting Two Fiber Optic Cables
    - High-precision Ceramic Sleeve


    Features
    - Low insertional loss and back reflection loss
    - High prcision alignment
    - Nickel plated brass body
    - Use in Single-mode or Multimode applications
    - Choice of housing material and sleeve material
    - ISO9001:2008, ROHS compliance

    Applications
    - CATV
    - Telecommunication networks
    - Test equipment
    - Metro
    - Local Area Networks(LANs)
    - Data processing networks


    Specification:

    Product Name

    Green Color Quad LC APC Shutter Adapter

    Singlemode Mid Coupler 4 Ways

    Part NumberKCO-SCA-Shutter-non
    Inserion Loss≤0.2dB
    Durability>1000 times
    Operating Temp-40~70°C
    MaterialPlastic
    ApplicationFTTx, LAN, CATV, Telecom
    Way1 way
    Connector TypeSC-SC
    Polish Type

    UPC

    APC

    Fiber Mode

    Singlemode;

    Multimode Om1; OM2; OM3; OM4; OM5

    Color

    SM: Blue,Green

    MM: Beige

    OM3: Aqua

    OM4: Violet

    OM5: Lime green

    Core4 cores
    Flangewith flange/with ear;
    Form of saleNeutral/ OEM/ ODM
    UseFiber connection
    Custom Designwelcom
    Sample Lead Timewithin 7 days after confirmation

    Reliability testing:

    ItemTest NameAdditional Insertion LossAdditional Return Loss
    1Mechanical durability<0.2dB<5dB
    2Repeatability<0.2dB<5dB
    3Lock strength<0.2dB<5dB
    4Low strength<0.2dB<5dB
    5High temperature<0.2dB<5dB
    6Steaming<0.2dB<5dB
    7Temperature cycle<0.2dB<5dB
    8Vibration<0.2dB<5dB
    9Drop<0.2dB<5dB

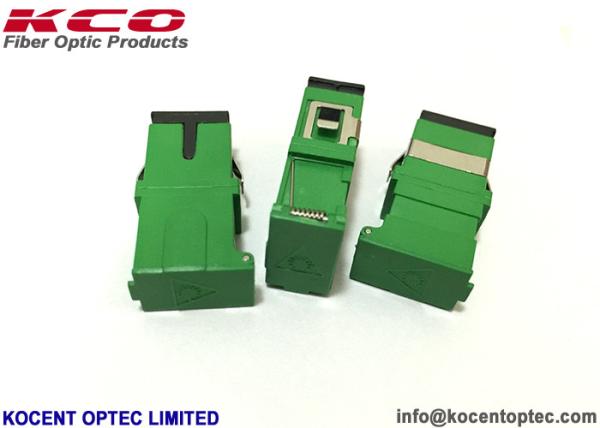

    Product pictures:



    Relation products:



    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea: COSCO, HUYNDAI, ...

    - Stardard shipping port: Shenzhen, Hongkong, Ningbo
