    0.9mm 2.0mm 3.0mm Fiber Optic Coupler Splitter 1x8 ABS Box Modular Low Insertion Loss

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-ABS-1x8-2.0-SCA
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 set/ month
    Delivery Time : 2~5 days
    MOQ : 1pc
    • Product Details
    • Company Profile

    0.9mm 2.0mm 3.0mm Fiber Optic Coupler Splitter 1x8 ABS Box Modular Low Insertion Loss


    1*8 Fiber Optic PLC Splitter 1x8 ABS Box Modular Splitter 0.9mm 2.0mm 3.0mm


    Descriptions:

    - A fiber optic splitter is a device that splits the fiber optic light into several parts by a certain ratio. For example, when a beam of fiber optic light transmitted from a 1X4 equal ratio splitter, it will be divided into 4-fiber optic light by equal ratio that is each beam is 1/4 or 25% of the original source one.

    - A fiber optic splitter is different from WDM. WDM can divide the different wavelength fiber optic light into different channels. fiber optic splitter divide the light power and send it to different channels.

    - Most fiber optic splitters available in 900µm loose tube and 250µm bare fiber.

    - 1x2 and 2x2 fiber optic splitters come standard with a protective metal sleeve to cover the split. Higher output counts are built with a box to protect the splitting components


    Features:

    - Low insertion loss
    - Low PDL
    - High return loss
    - Uniform power splitting
    - Compact design
    - Wide operating wavelength
    - Wide operating temperature
    - Excellent environmental &mechanical stability
    - Qualified under telcordia GR-1221 and GR-1209​

    - Compact Size

    - Wide Operating Wavelength: from 1260nm to 1650nm
    - Wide Operating Temperature: from -40℃ to 85℃​

    - Adopt 100% new raw material, ROHS compliance


    Introduction:

    - Kocent Optec Limited supply full series of fiber optic PLC Splitter such as: Mini Tube Type, ABS Box Modular Type, LGX box type, Rackmount type, Wall mount type, ....

    - We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications.

    - With more than 10 years of experience in passive fiber optic production, and closed of QC process, we promise that 100% of goods are tested and pass tested before shipment.


    Applications:
    - FTTx (FTTB, FTTH, FTTC)
    - Passive optical networks (PON)
    - Local area networks (LAN)
    - CATV systems
    - Test equipments

    Specifications:

    Fiber length1m or custom length
    Connector TypeCustom specified
    Optical Fiber TypeCorning SMF-28e fiber, G657A1 or as customized
    Directivity (dB) Min *55
    Return Loss (dB) Min *55 (50)
    Power Handling (mW)300
    Operating Wavelength (nm)1260 ~ 1650
    Operating Temperature(°C)-40~ +85
    Storage Temperature(°C)-40 ~ +85
    Port Configuration1x21x41x81x161x321x64
    Insertion Loss(dB) Typical3.67.110.213.516.520.5
    Insertion Loss (dB) Max4.07.310.513.716.921.0
    Loss Uniformity (dB)0.60.60.81.21.52
    PDL(dB)0.20.20.20.250.30.35
    Wavelength Dependent Loss(dB)0.30.30.30.50.50.5
    Temp. Dependent Loss (-40~85 ) (dB)0.40.40.40.50.50.5
    Port Configuration2X22X42X82X162X322X64
    Insertion Loss(dB) Typical3.87.410.814.21721
    Insertion Loss (dB) Max4.27.811.214.617.521.5
    Loss Uniformity (dB)11.41.522.52.5
    PDL (dB)0.20.20.40.40.40.5
    Wavelength Dependent Loss(dB)0.80.80.80.80.81
    Temp. Dependent Loss(-40~+85°C)0.50.50.50.80.81

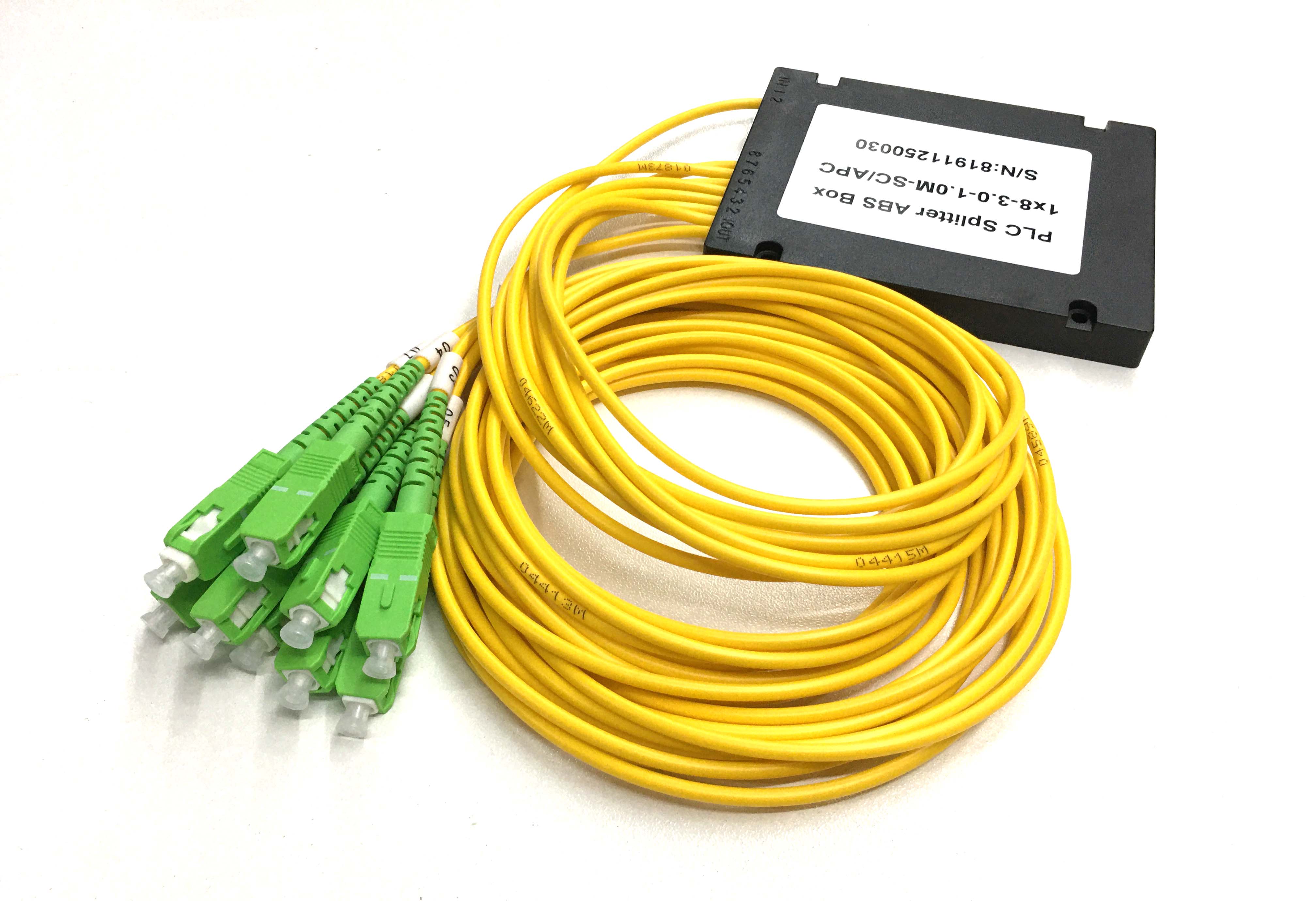

    Product photos:



    Relation products:



    OEM/ODM Service:
    - If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



    Packing:
    - According to Stardard Export Packing.
    - Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
    - Standard export sea port: Shenzhen, Hongkong, Ningbo
    - Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
