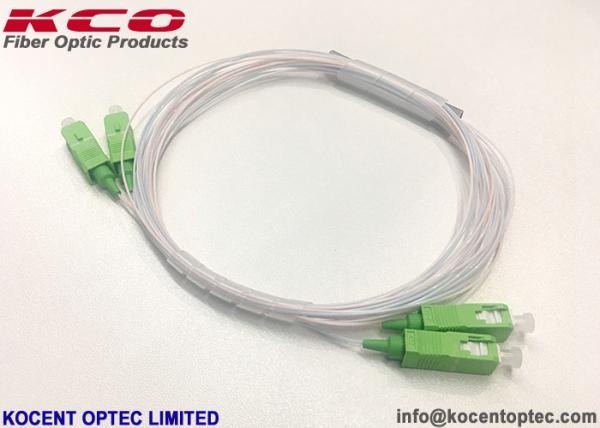

    LSZH Jacket Fiber Optic Splitter , 2x2 Optical Fiber Splitter 900um 1.5m Length

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-Mini-2*2-SCA
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 set/ month
    Delivery Time : 2~5 days
    MOQ : 1pc
    • Product Details
    • Company Profile

    LSZH Jacket Fiber Optic Splitter , 2x2 Optical Fiber Splitter 900um 1.5m Length


    Blockless 2x2 Fiber Optic PLC Splitter SC/APC LC/APC Green Connector 900um 1.5m LSZH


    Descriptions:

    - PLC (​Planar lightwave circuit) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

    - PLC splitter is based on Semiconductor technology. As its name shows, PLC splitters are manufactured by planar waveguide circuit technology. PLC splitter design consists of one optical PLC chip and several optical arrays depending on the output ratio. The optical arrays are coupled on both end of the PLC splitter chip.

    - PLC splitter is widely installed between the PON Optical Line Terminal (OLT) and the Optical Network Terminals/Units (ONTs/ONUs) that the OLT serves. The single fiber link coming from the Central Office (CO) OLT is connected with the input of a splitter and is split into given numbers of fibers leaving the splitter. The number of the outputs in the PLC module determines the number of splits. PLC splitters can be used in centralized PON architecture or distributed architecture. In a centralized PON architecture, generally a 1x32 PLC splitter is used in the Central Office. In a distributed PON architecture, a 1x4 PLC splitter is firstly directly connected to an OLT port in the Central Office, then each of the four fibers is routed to an outside plant terminal/enclosure box that houses a 1x8/1x4 PLC splitter.

    - Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.

    - Fiber PLC splitter provides a low cost light distribution solution with high stability and reliability.

    - The blockless splitter features small size, which is an intermediate choice between volume miniaturization and reliable fiber protection. It is suitable for installation in your system design and manufacturing.

    - 2x N Planar Light wave Circuit (PLC) Splitters are based on the Plasma Chemical Vapor Deposition (P-CVD) technology and its patented fabrication process for providing stable optical character.


    PLC Splitter Construction:



    Features:

    - 2x2 blockless PLC Splitter, SC/APC or LC/APC connector
    - 900µm G.657A1 or G652D for fiber input/output
    - Low insertion loss
    - Low polarization dependent loss (PDL)
    - Operating bandwidth: 1260 ~ 1650nm
    - Compact design, suitable for installation in optical equipments
    - Wide Operating Temperature: -40 - 85°C, support industry standard applications.
    - High reliability and stability, Telecordia GR-1221/1209 compliant


    Applications:
    - FTTx (FTTA, FTTH, FTTC, FTTB, FTTO, ...),
    - EPON, GPON,
    - LAN,
    - WAN,
    - Metro,
    - Fiber optic test, ...

    Specifications:

    Fiber length1m or custom length
    Connector TypeCustom specified
    Optical Fiber TypeCorning SMF-28e fiber, G657A1 or as customized
    Directivity (dB) Min *55
    Return Loss (dB) Min *55 (50)
    Power Handling (mW)300
    Operating Wavelength (nm)1260 ~ 1650
    Operating Temperature(°C)-40~ +85
    Storage Temperature(°C)-40 ~ +85
    Port Configuration1x21x41x81x161x321x64
    Insertion Loss(dB) Typical3.67.110.213.516.520.5
    Insertion Loss (dB) Max4.07.310.513.716.921.0
    Loss Uniformity (dB)0.60.60.81.21.52
    PDL(dB)0.20.20.20.250.30.35
    Wavelength Dependent Loss(dB)0.30.30.30.50.50.5
    Temp. Dependent Loss (-40~85 ) (dB)0.40.40.40.50.50.5
    Port Configuration2X22X42X82X162X322X64
    Insertion Loss(dB) Typical3.87.410.814.21721
    Insertion Loss (dB) Max4.27.811.214.617.521.5
    Loss Uniformity (dB)11.41.522.52.5
    PDL (dB)0.20.20.40.40.40.5
    Wavelength Dependent Loss(dB)0.80.80.80.80.81
    Temp. Dependent Loss(-40~+85°C)0.50.50.50.80.81

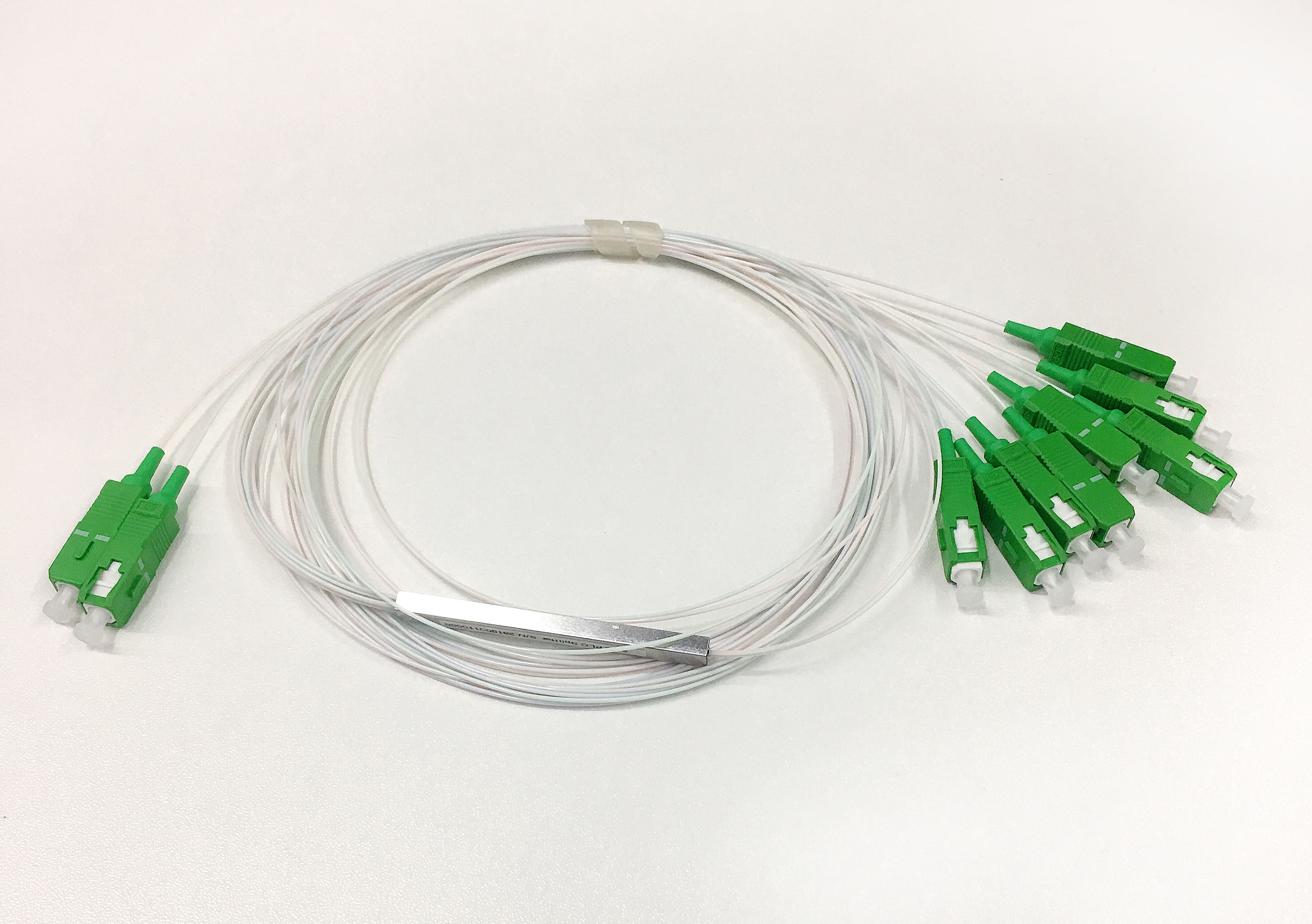

    Product photos:




    Relation products:



    OEM/ODM Service:
    - If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



    Packing:
    - According to Stardard Export Packing.
    - Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
    - Standard export sea port: Shenzhen, Hongkong, Ningbo
    - Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
