    FTTH 2x16 Fiber Optic Cable Splitter 2*16 Low PDL With SC/APC LC/APC Connector

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-Mini-2*16-SCA
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 set/ month
    Delivery Time : 2~5 days
    MOQ : 1pc
    • Product Details
    • Company Profile

    FTTH 2x16 Fiber Optic Cable Splitter 2*16 Low PDL With SC/APC LC/APC Connector


    FTTH 2x16 Optical Fiber Mini PLC Splitter SC/APC LC/APC 2*16 Fibre Optics Splitter SCA LCA


    Descriptions:

    - PLC stands for Planar Lightwave Circuit. PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.

    - 1xN PLC Splitter features guaranteed performance specifications and high reliability that surpass Telcordia requirements and is tailored for different applications and markets.

    - 2xN Planar Light wave Circuit (PLC) Splitters are based on the Plasma Chemical Vapor Deposition (P-CVD) technology and its patented fabrication process for providing stable optical character.

    - PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.

    - Installation is simple using a variety of connector types or fusion splicing.

    - For different applications, PLC splitters can be further categorized into different types including bare PLC splitters, blockless PLC splitters, ABS PLC splitters, LGX box PLC splitters, mini plug-in type PLC splitters, tray type PLC splitters and 1U rack mount PLC splitters.

    Applications:
    • - FTTX Systems
    • - PON Networks
    • - CATV Links
    • - Optical Signal Distribution
    • - Compliance:
      • - Telcordia GR-1209-CORE
      • - Telcordia GR-1221-CORE
      • - RoHS
    Features:
    • - Low Insertion Loss
    • - Low PDL (Polarization Dependent Loss)
    • - Compact Design
    • - High Reliability and Stability
    • - Good channel-to-channel uniformity
    • - Wide Operating Wavelength:
      From 1260nm to 1650nm
    • - Wide Operating Temperature:
      From -40°C to 85°C

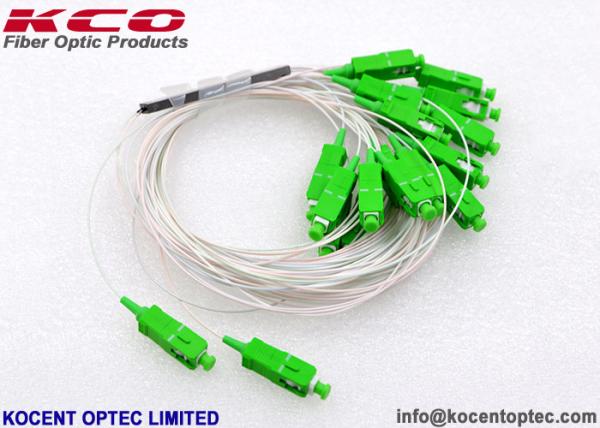

    Product photos:




    Specifications:

    Fiber length1m or custom length
    Connector TypeCustom specified
    Optical Fiber TypeCorning SMF-28e fiber, G657A1 or as customized
    Directivity (dB) Min *55
    Return Loss (dB) Min *55 (50)
    Power Handling (mW)300
    Operating Wavelength (nm)1260 ~ 1650
    Operating Temperature(°C)-40~ +85
    Storage Temperature(°C)-40 ~ +85
    Port Configuration1x21x41x81x161x321x64
    Insertion Loss(dB) Typical3.67.110.213.516.520.5
    Insertion Loss (dB) Max4.07.310.513.716.921.0
    Loss Uniformity (dB)0.60.60.81.21.52
    PDL(dB)0.20.20.20.250.30.35
    Wavelength Dependent Loss(dB)0.30.30.30.50.50.5
    Temp. Dependent Loss (-40~85 ) (dB)0.40.40.40.50.50.5
    Port Configuration2X22X42X82X162X322X64
    Insertion Loss(dB) Typical3.87.410.814.21721
    Insertion Loss (dB) Max4.27.811.214.617.521.5
    Loss Uniformity (dB)11.41.522.52.5
    PDL (dB)0.20.20.40.40.40.5
    Wavelength Dependent Loss(dB)0.80.80.80.80.81
    Temp. Dependent Loss(-40~+85°C)0.50.50.50.80.81

    OEM/ODM Service:
    - If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



    Packing:
    - According to Stardard Export Packing.
    - Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
    - Standard export sea port: Shenzhen, Hongkong, Ningbo
    - Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
