    0.9mm Cable Fiber Optic Fast Connector Field Installable SC/APC

    Ask Lasest Price
    Brand Name : KCO
    Model Number : SC/APC
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 350,000pcs/month
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

    0.9mm Cable Fiber Optic Fast Connector Field Installable SC/APC


    SC/APC Fiber Optic Fast Connector field installable fiber optic connector


    About fiber optic fast connectors:

    This kind of SC/APC fiber optic fast connector is special design for 0.9mm indoor fiber optic cable.


    Fast connectors features:

    - No special assembling tool

    - Quick and easy for assembling

    - Reusable and repeat operation times are up to 300

    - Integrated protection of the casing to prevent the connector form impact

    - Can be installed in two minutes

    - Power-save, as it does not need hot melting

    - Without any gluing and polishing process

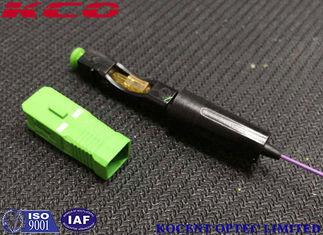

    Fast connectors photo:



    Application:

    1. CATV

    2. Telecommunication networks

    3. Test equipment

    4. Local Area Networks(LANs)

    5. Data processing networks

    6. Testing instruments


    Fast connectors Specifications:

    Applicable forDrop cable. Indoor cable(0.9/2.0/3.0mm)
    Optical fiber diameter125μm
    Tight buffer diameter250μm
    Fiber modeSingle mode
    Operation timeAbout 100s(no fiber cut)
    Insert loss≤ 0.3dB
    Return loss≥50dB
    Fastening strength of naked fiber>5N
    Fastening strength of naked fiber holder>10N
    Tensile strength>50N
    Using temperature-40°C~+75°C
