    ODVA Water-proof FTTA-08A MPO Connector FTTA Fiber Optic Splice Closure

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-FTTA-08
    Certification : iSO9001, RoHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 5,000pcs/week
    Delivery Time : 5~14 working days
    • Product Details
    • Company Profile

    ODVA Water-proof FTTA-08A MPO Connector FTTA Fiber Optic Splice Closure


    ODVA FTTA-08A Fiber Optic Enclosure Box MPO Water Proof Connector For Field Assembly


    Benefits:
    - High compatibility: can be assembled ODVA, OptiTap, Mini SC, AARC, PTLC, PTMPO or factory-sealed or field assembly

    - Compact size, save cost, easy to operating.

    - From 2 to 12 ports for single or multifiber harsh connectors
    - Available with PLC or splice sleeve for fiber divide

    - IP67 waterproof rating,Wall mounting, aerial installation or holding pole installation
    - Decreased angle surface and height make sure no connector interfering when operating
    - Cost effective: save 40% operating time


    Feature:

    - Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use of high quality polypropylene together with thermal aging additive
    - Made of material with good capability of outdoor environment resistance and high durability
    - Having reliable cable fixing and grounding facilities
    - Using self-adhesive isolative tape and glue belt to seal
    - To use rotating method to connect fiber organizer cassette result in easy installation
    - Mechanical design suitable for installing, fiber splicing storage and cable connection
    - Compact and tight


    Application:

    - FTTA (Fiber to the attena)

    - FTTx (FTTA, FTTB, FTTH, FTTO, ...)

    - CATV
    - Telecom

    - Opic fiber communications system

    - Military Communication, ...


    Specification:

    Product NameFTTA Fiber Optic Splice Closure Box
    P/NKCO-FTTA-06
    MaterialABS
    Dimension (mm):185*85*55mm
    Weight0.4KG
    Max Capacity12 Core
    Ports1 inlet 6 outlet
    Suitable Water Proof Connector:ODVA, Huawei Mini SC, PDLC, Optitap, ODC, ...

    Description:

    - This FTTA fiber optic splice closure is special design to use for FTTA project.

    - Norally it is installed on the pole come tho FTTA tower.

    - Can install many different types of water proof connector such as: PDLC, ODVA, Optitap, Huawei Mini SC/APC, ...

    - Come with 1pc input port, normally use to install the MPO waterproof connector, or also can use to install PLC splitter input connector.

    - FTTx splice closure is a new economic fiber distributed solution for outdoor use.

    - Compare traditional products, FTTx splice closure is easy to operate and has high compatibility.

    - It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.

    - FTTx splice closure not only used in FTTH field, but also used in FTTA or other harsh environment.

    - Traditionally, Remote Radio Unit (RRU) and Building Base band Unit (BBU) connected by optical fiber cable, formed star network topology. Each RRU need one duplex outdoor cable link to BBU. Installation will need more time and cost will be high.
    - FTTX Enclosure work as an Aggregation/Demark box, link RRU and BBU together. From BBU to FTTX Enclosure, only need one multi-fiber hybrid cable.
    - Then FTTX Enclosure divide fibers to each RRU through IP67 pre-assembled waterproof cable assemblies. RRU can get power through assembled power connector on FTTX Enclosure.It can avoid needless duplication.

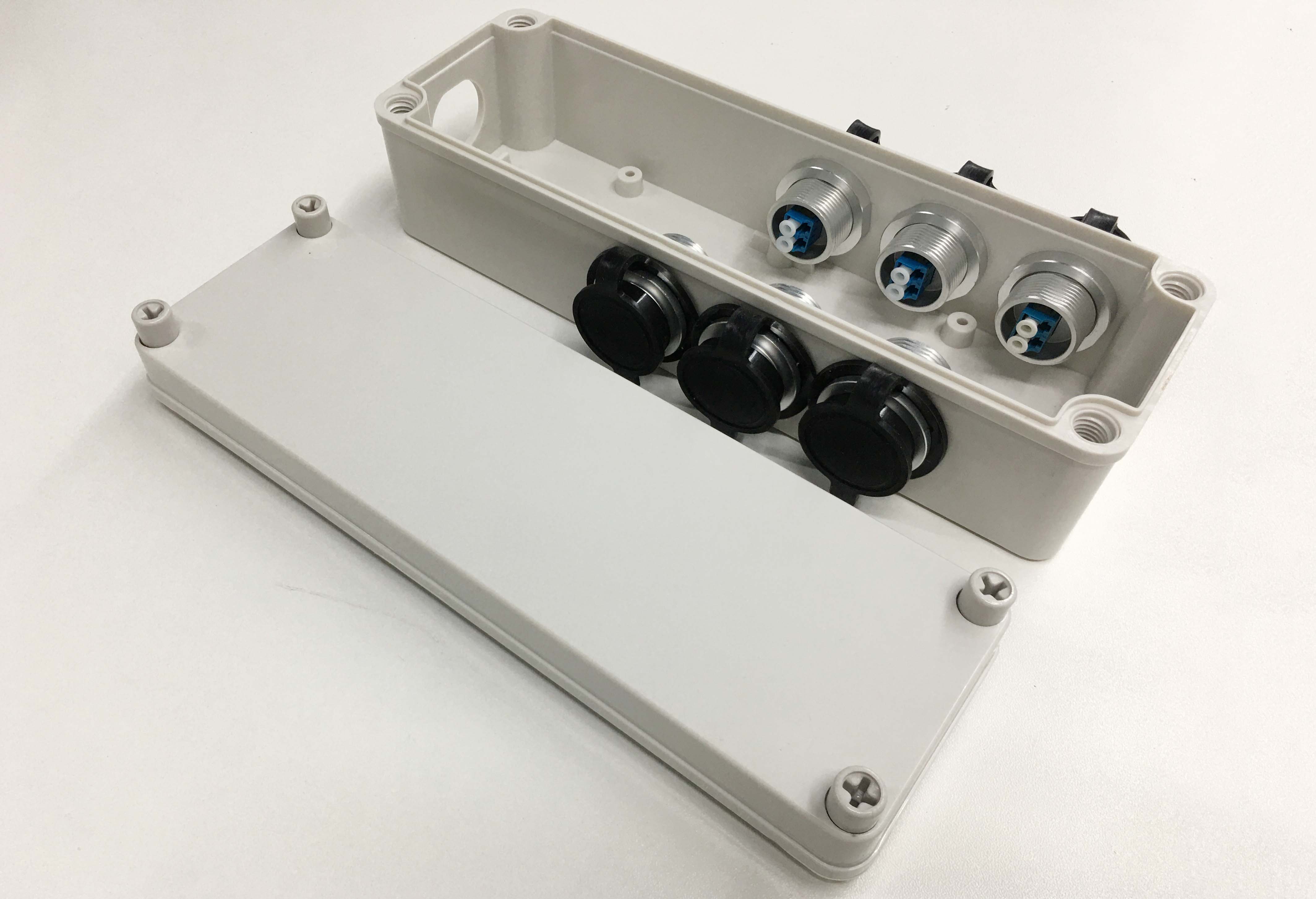

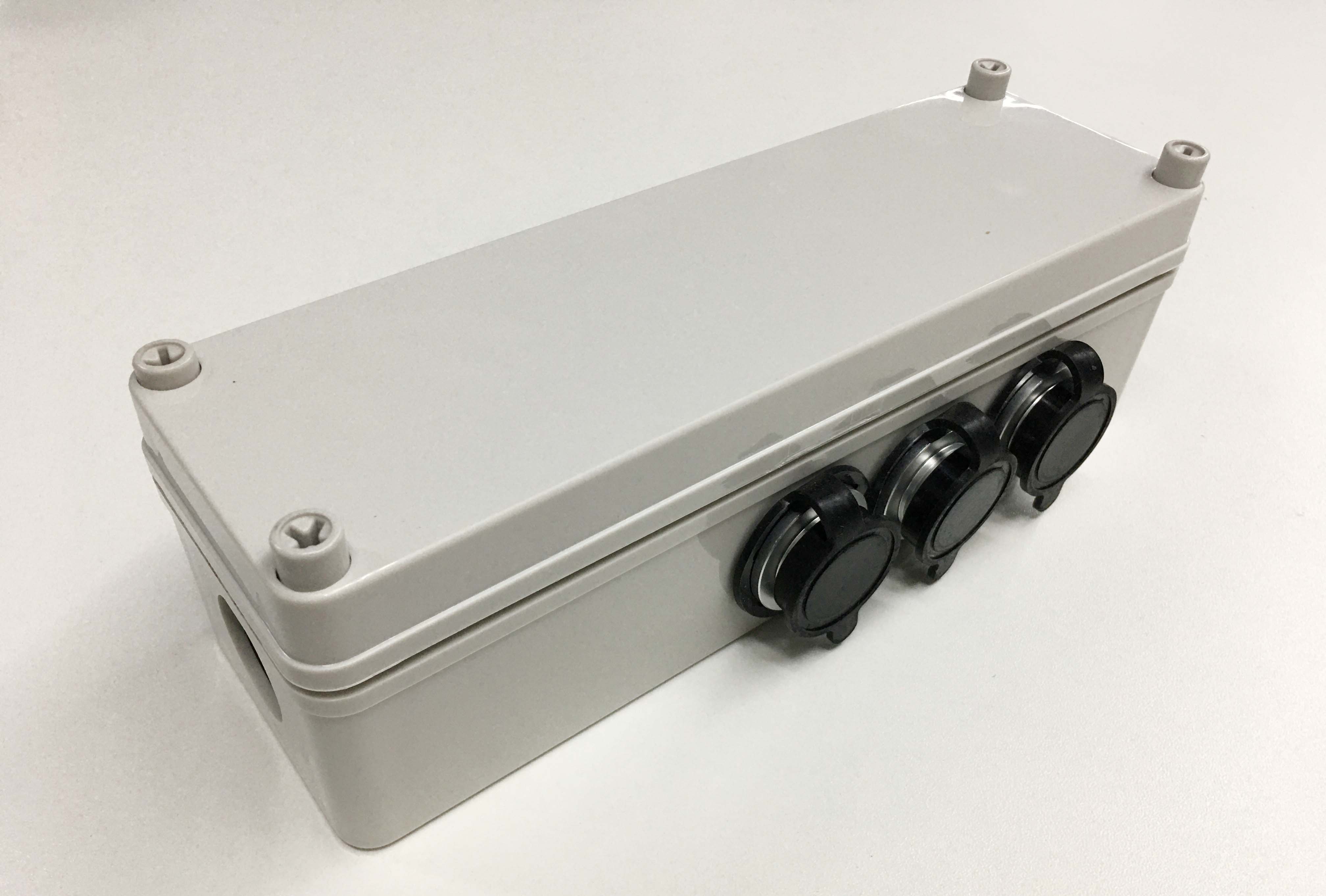

    Product pictures:



    Relation products:


    Lead time:
    Quantity(Pieces)1~1011~100101~500>500
    Est. Time(days)310Negotiable

    OEM/ODM Service:
    - If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

    Mini Dome Fiber Optic Splice Closure KCO-DM22-48LX Outdoor IP67 Pole Mount 24/48 Core


    Packing:
    - According to Stardard Export Packing.
    - Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
    - Standard export sea port: Shenzhen, Hongkong, Ningbo
    - Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
