1:32 SM G652D ABS Module Passive 1x32 Fiber Optic PLC Splitter

Ask Lasest Price
Brand Name :	KCO, Kocent Optec Limited
Model Number :	KCO-ABS-1x32-2.0-1.5M-SCA
Certification :	ISO9001, RoHS
Price :	Negotiation
Payment Terms :	Western Union, T/T, L/C
Supply Ability :	20,000 set/ month
Delivery Time :	2~5 days

Add to Cart

Product Details
Company Profile

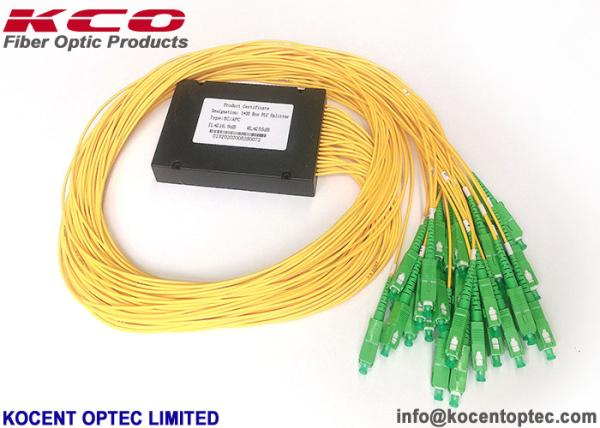

1:32 SM G652D ABS Module Passive 1x32 Fiber Optic PLC Splitter

1*32 PLC Splitter Black ABS Box Module Passive Fiber Optic Component For Fiber To The Home

Descriptions:

- Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers a low cost solution for optical signal distribution.

- It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity.

- Precision Micro-optics provides 1xN and 2xN series of splitters.

- Three packaging types are available fan-out PLC splitter, module PLC splitter, or rack mount PLC splitter shown below.

- A fiber optic splitter is a passive optical device that can split or separate an incident light beam into two or more light beams.

- These beams may or may not have the same optical power as the original beam, based on the configuration of the splitter. By means of construction, the outputs of a optical splitter can have varying degrees of throughput, which is highly beneficial when designing optical networks, whether the optical splitter is used for network monitoring or for a loss budget in a passive optical network (PON) architecture.

- It is a passive optical device with many input and output terminals, especially applicable to PON (EPON, GPON, BPON, FTTX, etc.) to connect the MDF (main distribution frame) and the terminal equipment and to branch the optical signal.

- Fiber PLC splitter provides a low cost light distribution solution with high stability and reliability.

Introduction:

- Kocent Optec Limited supply full series of fiber optic PLC Splitter such as: Mini Tube Type, ABS Box Modular Type, LGX box type, Rackmount type, Wall mount type, ....

- We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications.

- With more than 10 years of experience in passive fiber optic production, and closed of QC process, we promise that 100% of goods are tested and pass tested before shipment.

Features:

- Low insertion loss and PDL
- High channel number
- Compact size
- High reliability
- Wide operating wavelength and temperature range
- Excellent channel uniformity

Applications:

- Fiber optic splitters play an increasingly significant role in many of today’s optical network topologies.

- They provide capabilities that help users maximize the functionality of optical network circuits from FTTx systems to traditional optical networks. And usually they are placed in the central office or in one of the distribution points (outdoor or indoor).

Specifications:

Fiber length	1m or custom length
Connector Type	Custom specified
Optical Fiber Type	Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min *	55
Return Loss (dB) Min *	55 (50)
Power Handling (mW)	300
Operating Wavelength (nm)	1260 ~ 1650
Operating Temperature(°C)	-40~ +85
Storage Temperature(°C)	-40 ~ +85
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64
Insertion Loss(dB) Typical	3.6	7.1	10.2	13.5	16.5	20.5
Insertion Loss (dB) Max	4.0	7.3	10.5	13.7	16.9	21.0
Loss Uniformity (dB)	0.6	0.6	0.8	1.2	1.5	2
PDL(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temp. Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5
Port Configuration	2X2	2X4	2X8	2X16	2X32	2X64
Insertion Loss(dB) Typical	3.8	7.4	10.8	14.2	17	21
Insertion Loss (dB) Max	4.2	7.8	11.2	14.6	17.5	21.5
Loss Uniformity (dB)	1	1.4	1.5	2	2.5	2.5
PDL (dB)	0.2	0.2	0.4	0.4	0.4	0.5
Wavelength Dependent Loss(dB)	0.8	0.8	0.8	0.8	0.8	1
Temp. Dependent Loss(-40~+85°C)	0.5	0.5	0.5	0.8	0.8	1

Product photos:

Packing way:

Our PLC Splitter Family:

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
