    KCO-MADIDI-MSC-D 12 Cores 4 Tray 48fo Horizontal Fiber Optic Splice Enclosure

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-MADIDI-MSC-D
    Certification : iSO9001, RoHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 5,000pcs/week
    Delivery Time : 5~14 working days
    • Product Details
    • Company Profile

    KCO-MADIDI-MSC-D 12 Cores 4 Tray 48fo Horizontal Fiber Optic Splice Enclosure


    KCO-MADIDI-MSC-D 48fo 4tray Fiber Optic Splice Closure Box 12 Cores 24 Fibers


    Overview:

    - Kocent Optec Limited is one of lead supplier of passive fiber optic product in China. Special is all type of fiber optic splice eclosure box.

    - We can provide Horizontal type ABS/PC/PPR fiber optic splice closure from 6 cores up to 288 cores for fiber optic cables connection use for aerial, underground, pipeline, hand-holes in Telecom project.

    - The cable out-port can do 3 ports up to 10 ports.

    - We also can supply vertical type of fiber optic splice enclosure box. Also, OEM Service is available, such as LOGO print, package, label, etc all can be customized.


    Quick detail:

    - Name: Inline fiber optic splice enclosure box

    - Part number: KCO-MADIDI-MSC-D

    - Size: 480*160*105mm

    - Weight: about 2.2kg

    - Cable entry port: 4 ports

    - Capacity of fibers: 96 cores

    - Splice tray number: max. 4 trays

    - Material: ABS/ PC/PPR/PP Plastic

    - Cable Diameter: 7.0-22.0mm

    - Working temperature: -40℃ to 65℃


    Applications:

    - CATV networks

    - Local area networks

    - Widely used in FTTH access network
    - Telecommunication networks
    - Data communications networks

    - Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.


    Features:

    - High quality plastic made.

    - Great corrosion resistance.
    - Suitable for any harsh environment.
    - Anti-lighting.

    - Great water-proof function.


    Main parts:

    No.NameQuantityUsageRemark
    1Crust1 setProtecting fiber cable splices in whole
    2Fusion splice trayMax.4 trayFix fiber, Protect heat-shrinkable tube Sleeve
    3Foundation1 setFix cable,reinforced core and tray
    4Seal fitting1 setAir-proof between cover and bottom
    5Port plug4 piecesSealing empty ports
    6Valve1 setPressure measurement,inspection sealingConfigure by user

    Accessories list:

    No.Name of accessoriesQuantityUsageRemarks
    1Heat shrinkable tubeProtecting fiber splicesConfiguration as per capacity
    2Nylon tieFixing fiber with protective coatConfiguration as per capacity
    3Insulation tape1 rollEnlarging diameter of fiber cable for easy fixing
    4Seal tape1 rollEnlarging diameter of fiber cable which fits in with seal fittingConfiguration as per specification
    5Hanging hook1 setFor aerial use
    6Label tape1 pieceSign fiber
    7Spanner1 pieceInstall bolts of shell
    8Desiccant1 bagDesiccating air.

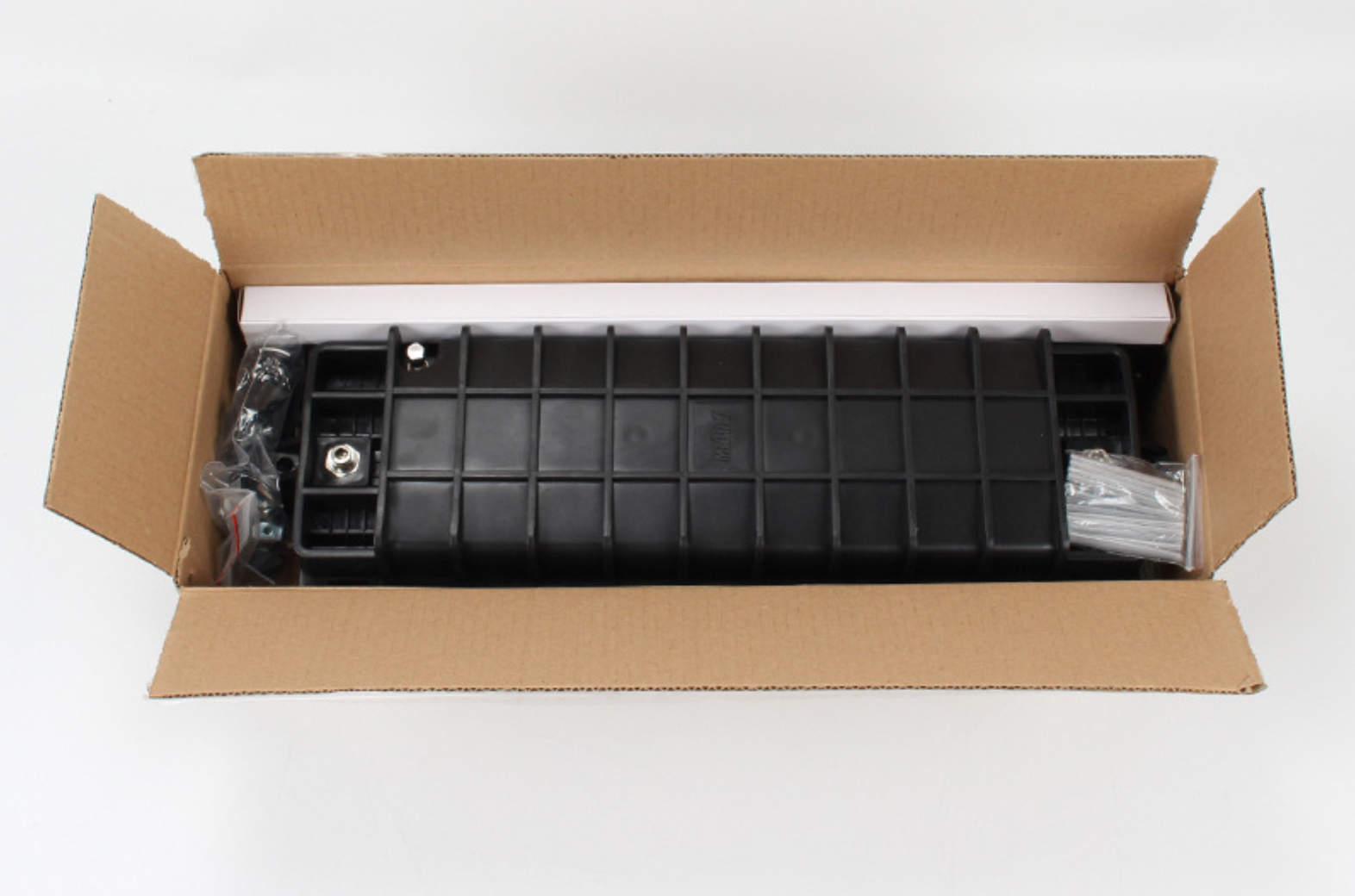

    Product pictures:


    OEM/ODM Service:
    - If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.


    Packing:
    - According to Stardard Export Packing.
    - Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
    - Standard export sea port: Shenzhen, Hongkong, Ningbo
    - Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
