    OptiTap Connector FTTA CPRI Outdoor Fiber Optic Patch Cord

    Ask Lasest Price
    Brand Name : KCO
    Model Number : KCO-01
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

    OptiTap Connector FTTA CPRI Outdoor Fiber Optic Patch Cord


    H-Optic OptiTap Connector CPRI Fiber Optic Patch Cord Field Patch Cable FTTH Patch Jumper


    Features:
    - The connectors are comply with IEC, Telcordia-GR-326-Core standards;
    - Different size & color boot option;
    - Low insertion loss; High return loss;
    - 100% interferometer measurement;

    Application:
    - Telecommunication networks;
    - Local area networks;
    - CATV;
    - Active device termination;
    - Data center system networks;
    - PON;
    - Military exercise;
    - Performance and so on.


    Specifications:

    ParametersStandard Fiber Cable Assemblies
    ConnectorSide A: SC with armored
    Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei, ...
    Fiber count2 cores
    4 cores
    6 cores
    8 cores
    12 cores
    Fiber TypeSM
    G.652D
    G.657A (A1, A2, B3, ...)
    MM
    OM1
    OM2
    OM3
    OM4
    OM5)
    Jacket MaterialsLSZH
    TPU
    PE
    Cable diameter4.8mm
    5.0mm
    5.5mm
    6.0mm
    6.5mm
    7.0mm
    Testing WavelengthsSM:
    1310±30nm
    1550±30nm
    MM:
    850±30nm
    1300±30nm
    Insertion Loss(dB)
    TIA/EIA-455-107
    ≤ 0.3dB(PC/UPC/APC)
    ≤ 0.3dB(UPC)
    Return Loss(dB)
    TIA/EIA-455-107
    ≥45dB (PC/UPC)
    ≥55dB (APC)
    ≥35dB (UPC)
    Exchange ability≤ 0.2dB
    Cable AssembliesPigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord
    Operating Temperature-14℃~+ 85℃
    Storage Temperature-40℃~+85℃

    Introduction:
    - H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
    The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
    - The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications
    - Provides superior weather resistance for FTTA and other outdoor applications.
    - Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
    - Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
    - Can be installs without special tooling
    - Threaded style coupling
    - Provides bend protection for installation and long term use

    - Application: A CPRI/ FTTA/ Base Station patch cord is used as: 3G 4G base station, Aerospace& Defence, Equipment diagnosis, FO sensor, FTTA ,FTTP, FTTX, WIMAX, BBU, RRU, RRH, LTE.
    - Product is available in 1-core, 2-core, 4-core, 6-core, 8-core, 12-core.
    - Kocent Optec Limited is one of lead outdoor field fiber optic patch cord manufacturer. Special is in all type of field fiber optic patch cord with waterproof connector, such as: Fullaxs Connector, Military Connector, PDLC, ODVA, ...
    - With more than 10 years of production exprerience, we supply standard telecom and broadcast television grade of patch cord for customers. All of goods are tested before shipment. We provide OEM and ODM service. Contact with our sales team to get more informations about us and products.


    Characteristics:
    - Good Durability

    - Low insertion loss and back reflection loss
    - Good exchangeability
    - Precise connector
    - High temperature stability.
    - Excellent mechanical capability

    Parameter:
    - Insertion Loss: <=0.2dB
    - Return Loss: >=50dB
    - Fiber mode: Single-mode/ Multi-mode
    - Operating wavelength: 1310, 1550nm
    - Test wavelength: 1310,1550nm
    - Repeatability: <=0.1
    - Interchangeability: <=0.2dB
    - Durability: <=0.2dB
    - Fiber Length: 1m, 2m….. any length optional.
    - Length and tolerance: 10cm
    - Operating Temperature: -40C ~ +85C
    - Storage Temperature: -40C ~ +85C

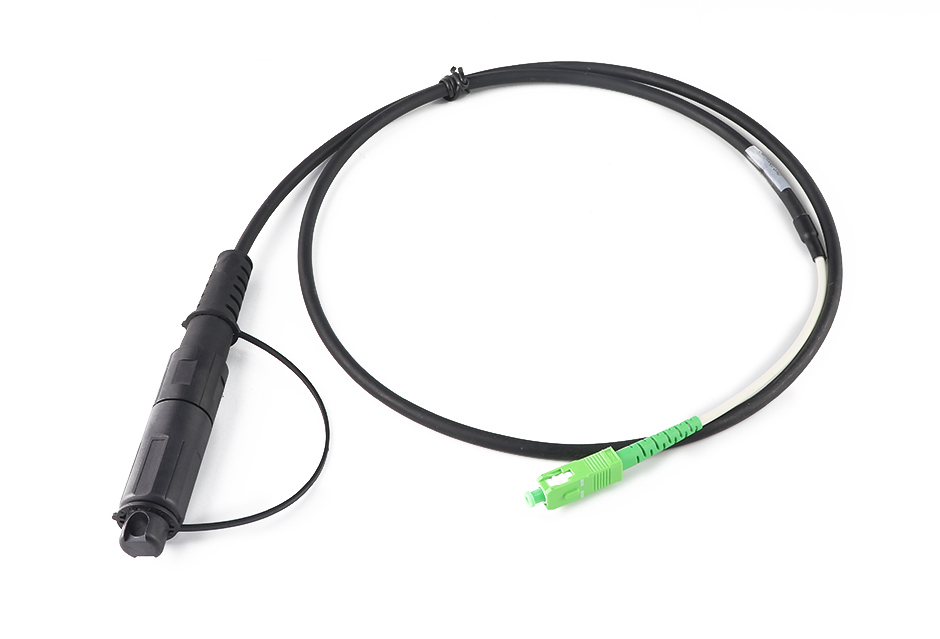

    Products photo:




    Cable constructions:
    - Type 1: SUS Spiral Steel Amoured +Kevlar+ LSZH/TPU+2×Buffered 0.9mm fiber (4.8mm / 5.0mmmm);
    - Type 2: SUS Spiral Steel Amoured + Kevlar+LSZH/TPU+ 2×2.0mm cable (7.0mm)
    - Other cable construction welcome to customerized.

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:
    - According to Stardard Export Packing.
    - Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
    - Standard export sea port: Shenzhen, Hongkong, Ningbo
    - Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
