    SC UPC Telkom 16 Core ODP Optical Distribution Point

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-TK-208
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    SC UPC Telkom 16 Core ODP Optical Distribution Point


    Telkom 16 Core ODP Optical Distribution Point ABS+PC Grey 1*8 PLC Splitter SC/UPC


    Descriptions:

    - Optical Distribution Point with Solid Splitter (ODP Solid) is designed to connect to Feeder / Distribution cable to subscriber’s Drop Cable using PLC Splitter in FTTx networks.

    - This ODP has two (2) input ports and 16 output ports on the bottom and it is easy to install on the pole or wall.


    Specification:

    ItemKCO-TK-208
    Dimension345x300x95mm
    Net Weight1.8kg
    Splice tray1pcs
    Adapter ports16 port
    SplitterMini Tube PLC Splitter 1*8
    Splitter no.max. 2pcs
    ColorGrey
    Working Temperature-25°C ~ 60°C (5 to 95% relative humidity)

    Feature:
    - ABS material used ensures the body strong and light.
    - Water-proof design for outdoor uses.
    - Protection Level: IP65.
    - Easy installations: Ready for wall mount – installation kits provided
    - Adapter slots used – No screws and tools needed for installing adapters.
    - Ready for splitters: designed space for adding splitters.
    - Space saving! Double-layer design for easier installation and maintenances:
    - Lower layer for splitters and over length fiber storage.
    - Upper layer for splicing, cross-connecting and fiber distribution.
    - Cable fixing units provided for fixing the outdoor optical cable.
    - Accommodates both cable glands as well as tie-wraps
    - Lock provided for extra security


    Application
    - Widely used in FTTX systems;
    - PON networks;
    - Fiber optic termination, indoor and outdoor application;
    - CATV networks, data communications networks, telecommunication networks;
    - FTTD (Fiber To The Desk) interfaces.


    Operating Conditions:
    - Temperature -45~+85
    - Relative humidity 85%(+30 C)
    - Atmospheric pressure 70KPa~106KPa


    Qualification:
    - Nominal work wave-length:850nm,1310nm,1550nm
    - Connectors loss 0.2dB
    - Insert loss 0.2dB
    - Return loss >=50dB(UPC),>=60dB(APC)
    - Insulation resistance (between frame and protection
    - Grounding) >1000MΩ/500V(DC)

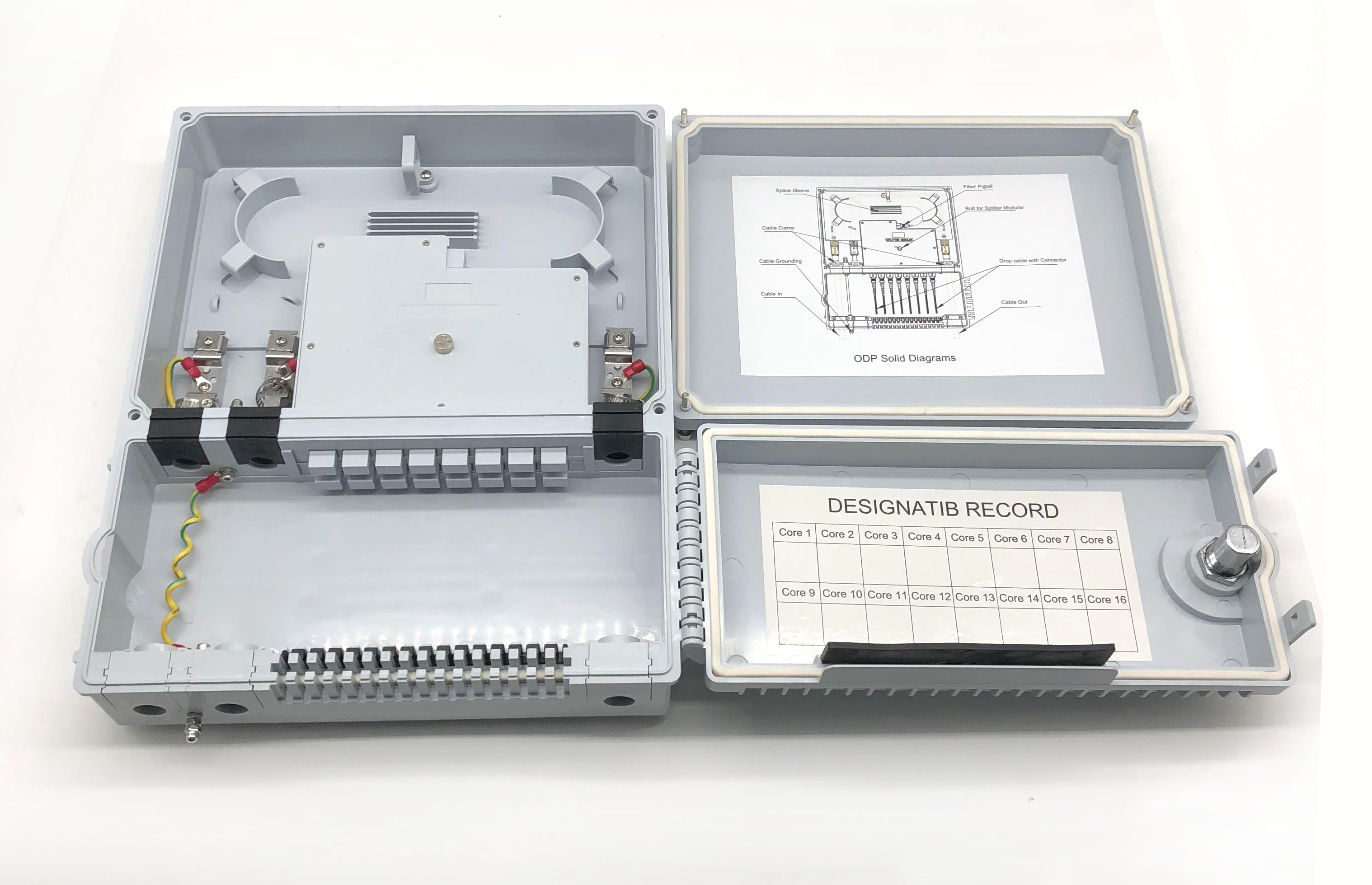

    Products photos:





    Related Products:

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea: COSCO, HUYNDAI, etc

    - Standard shipping port: Shenzhen, Hongkong, Ningbo
