    FTTH ABS 8fo 16fo Telkom Fiber Optic Terminal Box

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-TK-208
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    FTTH ABS 8fo 16fo Telkom Fiber Optic Terminal Box


    Indonesia Telecom ODP OTD FDP Fiber Ditribution Point Pole-mount Terminal Box 16fo SCUPC

    Descriptions:

    - This fiber optic distribution point box is special design for outdoor application. It can match IP65 waterproof standard.

    - Optical Distribution Point with Solid Splitter (ODP Solid) is designed to connect to feeder or distribution cable to subscriber’s drop Cable using PLC Splitter in FTTx networks.

    - This ODP has two (2) input ports for outdoor cable and 16 output ports for ftth drop cable on the bottom and it is easy to install on the pole or wall.

    - It is especially for connection and protection for fiber cable for FTTH.
    - This fiber optic terminal box applies to the communication room and various network room wall installation or desktop installation.
    - FTTH insert optical fiber terminal splitter box, arc, horizontal type.


    Feature:

    - Up to 16 FTTH drops

    - Suitable for wall and pole mountable

    - User familiar industry interface, using high impact plastic
    - Can accommodate two 1ⅹ8 splitters or one 1ⅹ16 splitter
    - Ultra violet resistant and rain resistant

    - 16 pcs of adapter port is fit with SC or LC non-flange adapter
    - 2 inlet capacity for outdoor cable and 16 outlet ports for ftth drop cable.
    - Meets cable termination and sealing requirements

    Application

    - PON networks;

    - Widely used in FTTX systems;
    - Telecom project
    - Fiber optic termination, indoor and outdoor application;
    - CATV networks

    - Data communications networks

    - Telecommunication networks;
    - FTTD (Fiber To The Desk) interfaces.


    Operating Conditions:
    - Temperature range: -45°C~+85°C
    - Relative humidity: 85%(+30°C)
    - Atmospheric pressure: 70KPa~106KPa


    Qualification:
    - Connectors loss: 0.2dB
    - Insert loss: 0.2dB
    - Return loss:

    50dB(UPC),

    60dB(APC)

    - Nominal work wave-length: 850nm,1310nm,1550nm
    - Insulation resistance (between frame and protection grounding) >1000MΩ/500V(DC)


    Specification:

    ItemKCO-TK-208
    Dimension345x300x95mm
    Net Weight1.8kg
    Splice tray1pcs
    Adapter ports16 port
    SplitterMini Tube PLC Splitter 1*8
    Splitter no.max. 2pcs
    ColorGrey
    Working Temperature-25°C ~ 60°C (5 to 95% relative humidity)

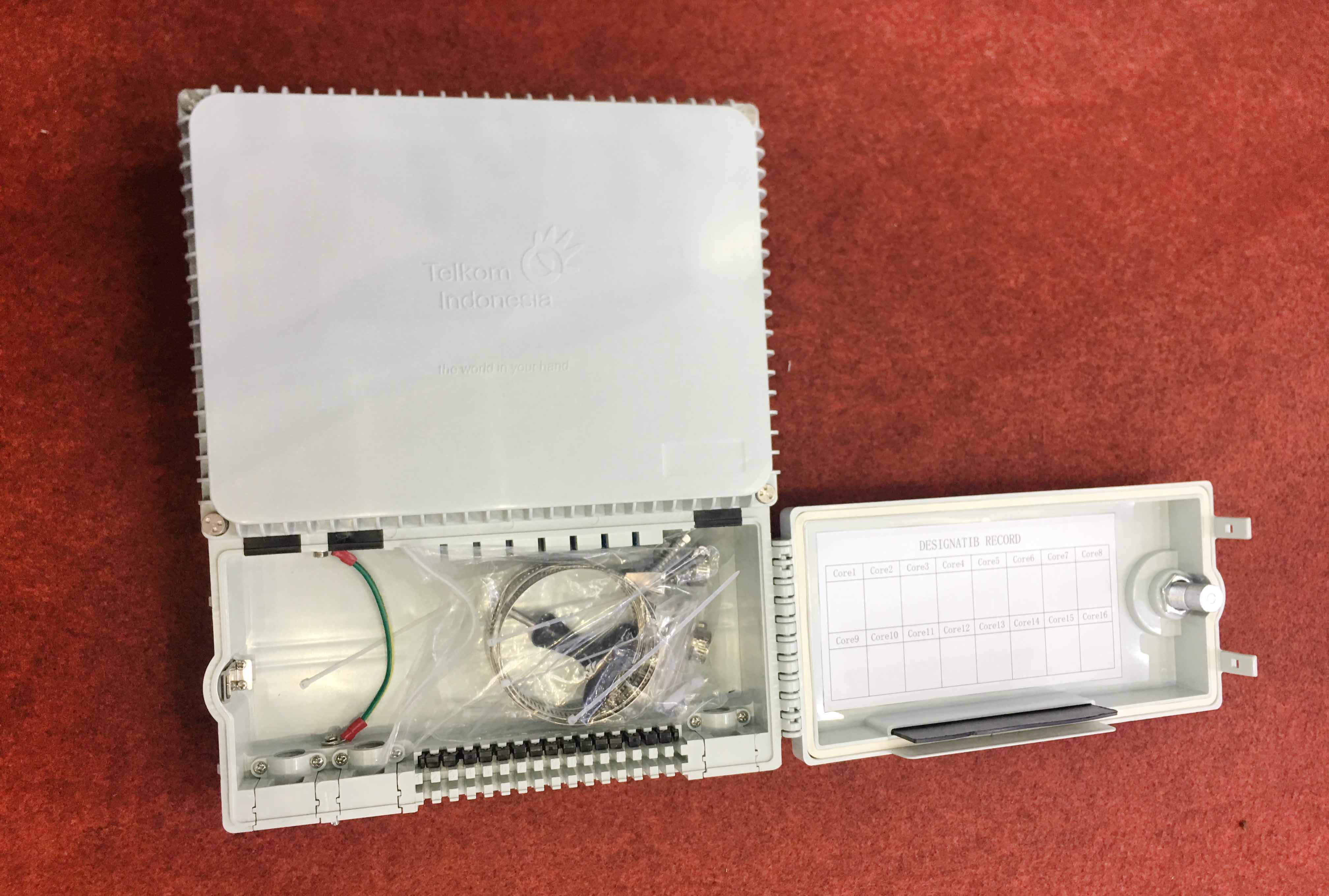

    Products photos:


    Related Products:

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea: COSCO, HUYNDAI, etc

    - Standard shipping port: Shenzhen, Hongkong, Ningbo
