19 Inch Rack Mountable 96 Core LC Duplex Port 1U MPO MTP Optica Fibra Patch Panel

Quick informations:
- Name: 19'' MPO MTP Patch Panel
- Capacity: 96 core
- Maximum module number: 4pc
- Optical port: LC duplex, MPO
- Cable length: 0.3m
- Patch panel size: 480x245x1U(mm)
- Color: black (OEM other color)

Features:
- 19" standard size, easy install.
- Fit with 19'' Rack type Cabinet.
- Made by cold roll steel, electrostatic powder spraying.
- Fixed type, with PC material front transparent cover, convenient for observation and maintenance.
- Its cover is easy to open and close by using button.
- Back side with 2 oval port 22*60mm for cable entry.
- Load max. 4pcs MTP/MPO cassette (Model: MB-M015).
- Each MTP/MPO cassette can load 6pcs LC quad adapter & 2pcs MTP/MPO adapter, max. 24fibers.
- The MTP/MPO cassette with PC material transparent cover, easy to observation and maintenance.

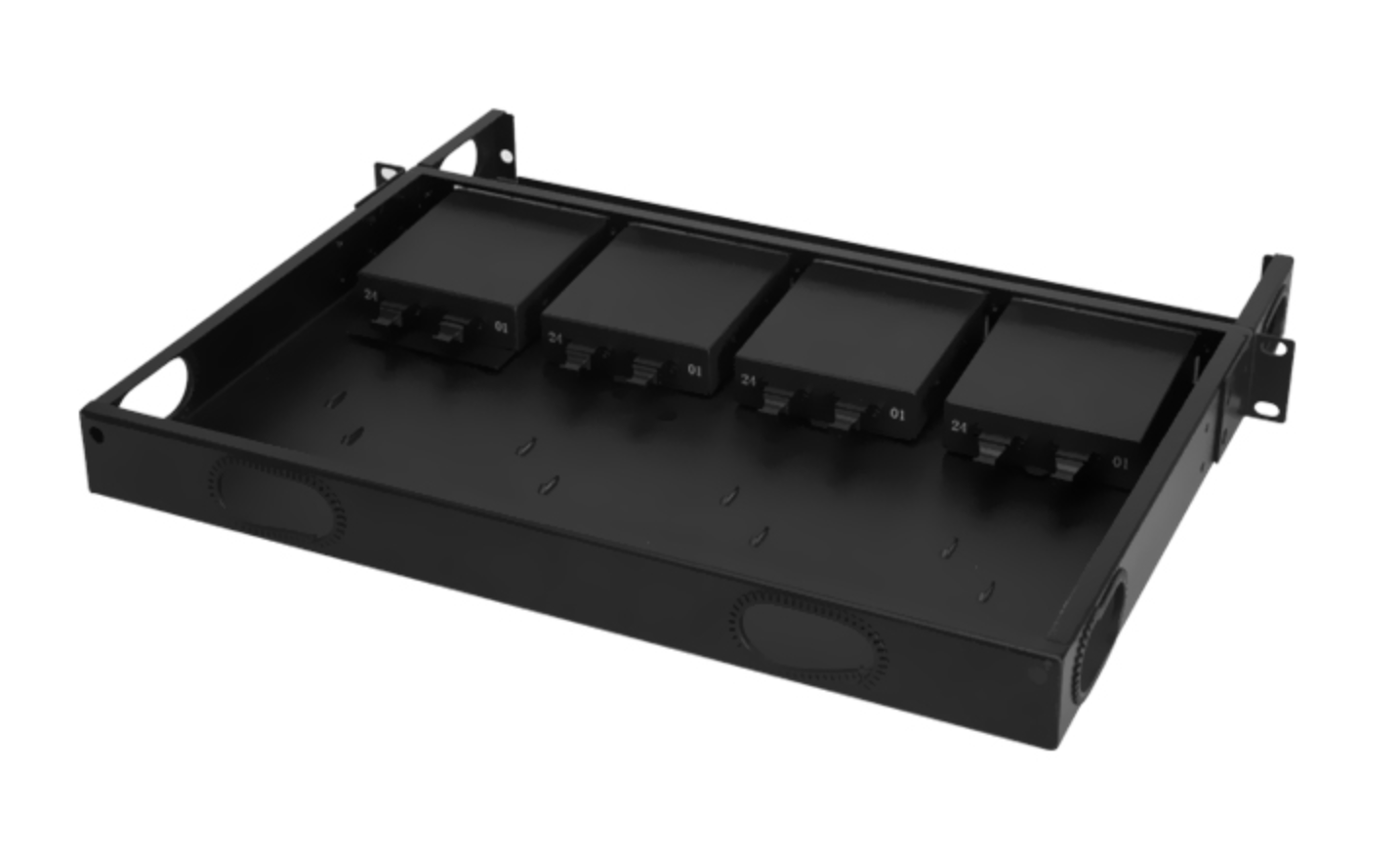

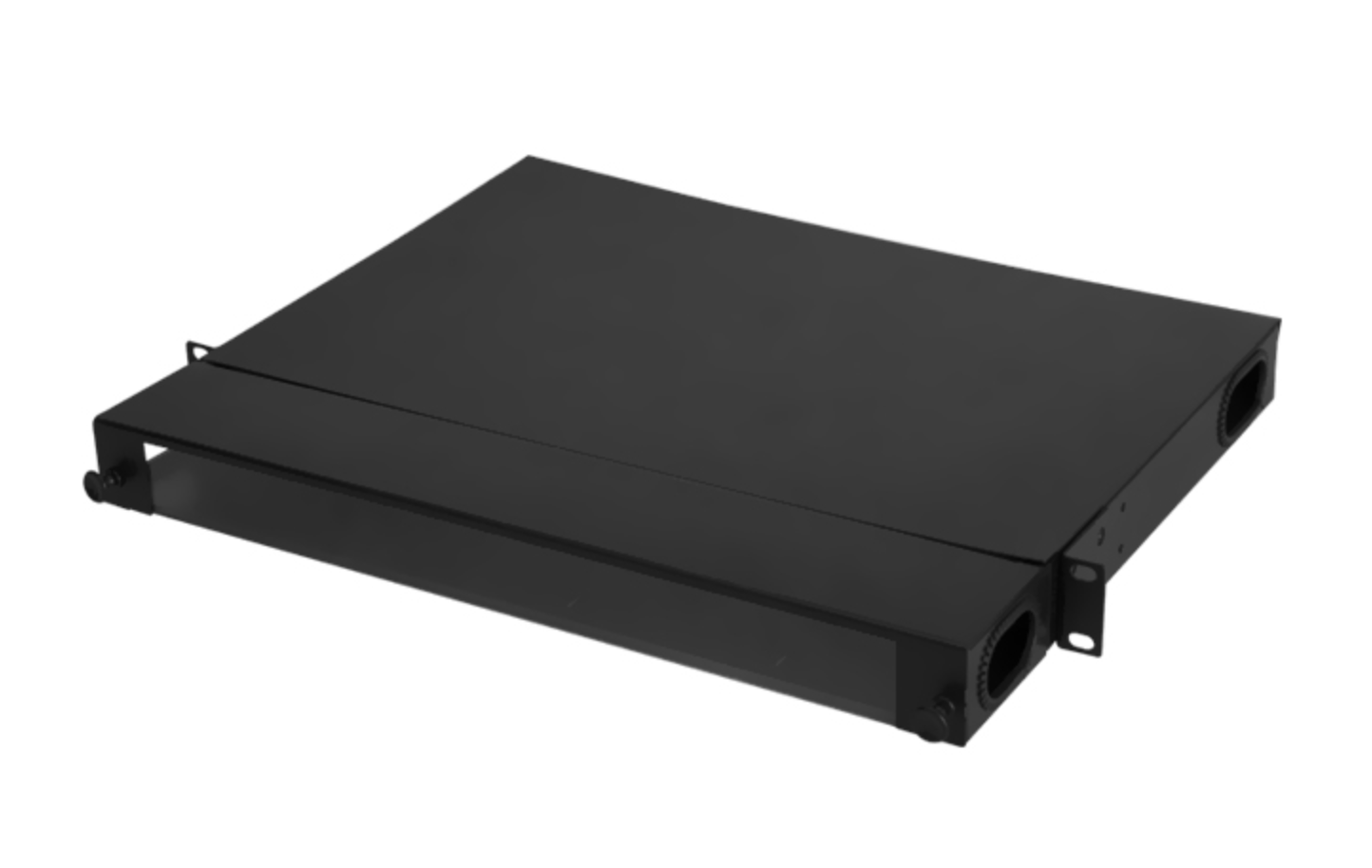

Product photo:

Product size:

MTP/MPO Connector Specifications:
